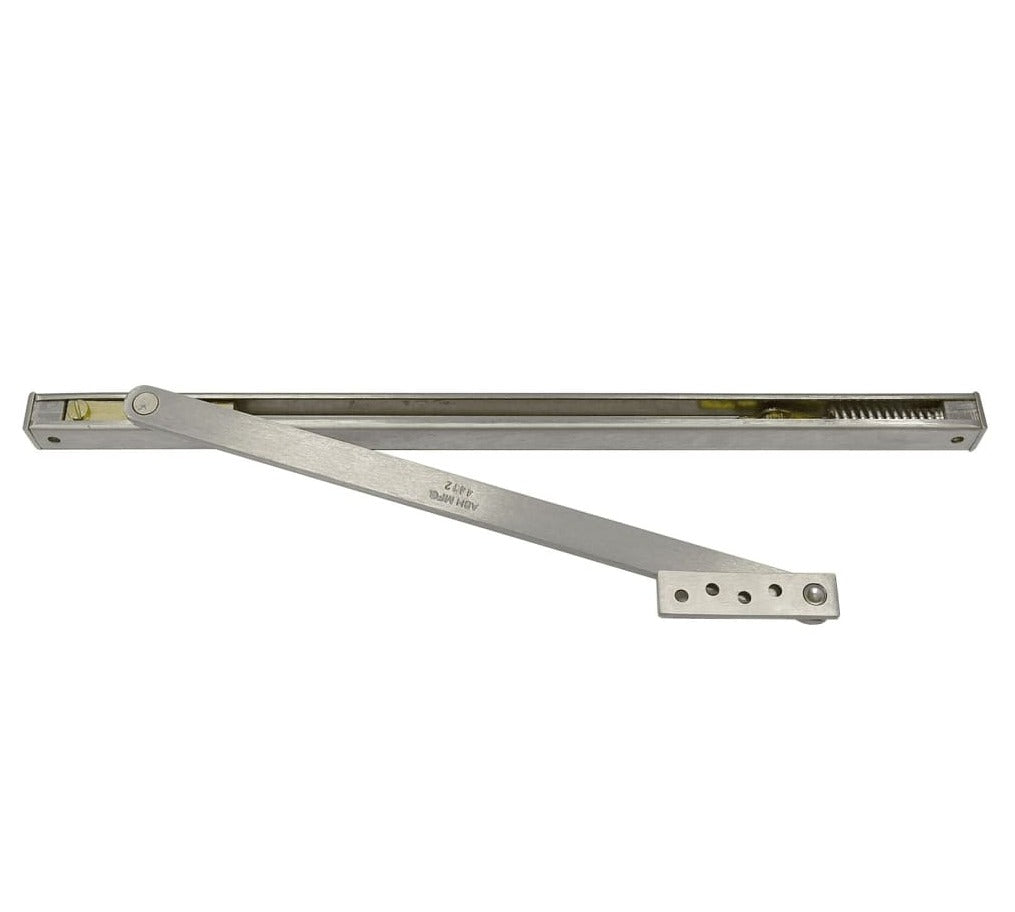

4400 Series Medium Duty Surface Fixing Door Stay - Z144

Any door can be subject to all kinds of abuse such as forced, violent openings, and wind and draught conditions. The use of an overhead holder/stop can control the door opening and prevent damage to glass, pivots, jamb and reveals, and eliminate costly repairs. All three door stays on this page have a spring to absorb some of the opening shock when the door is opened, and a knurled roller in the bottom of the stay which can be toggled to hold the door open at 90°. To disengage the hold-open, the door is pulled in the direction of closing.

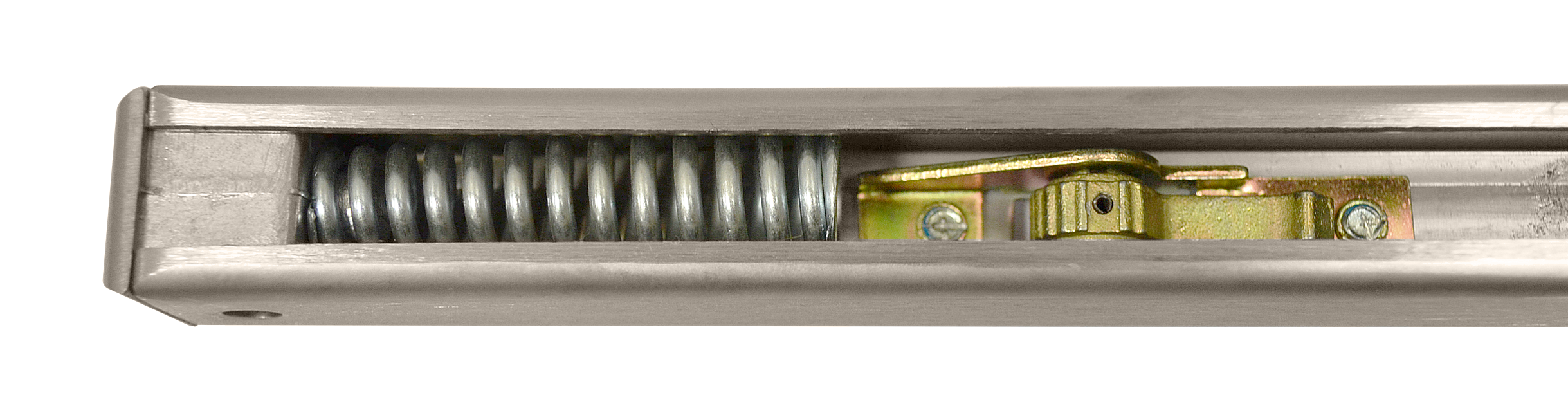

Medium duty stay with a spring to absorb shocks when the door is opened. Surface mounting at the door. With hold-open facility, which can be disengaged to act as a stop only.

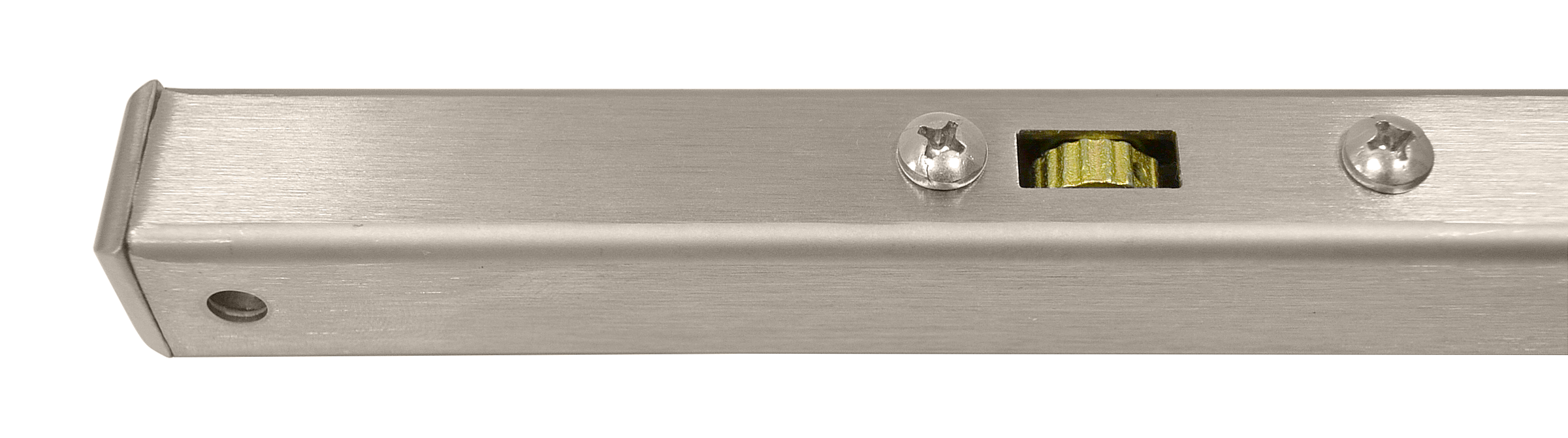

4400 series surface fixing: friction stay is surface fixing at the top of the door so the knurled roller can be toggled between hold open and non-hold open by turning the knurled roller located at the bottom of the stay. 4400 series is US32D satin stainless steel finish (not all components stainless).Reversible, non-handed pattern. Maximum door opening 110°. Maximum door thickness 60mm.
