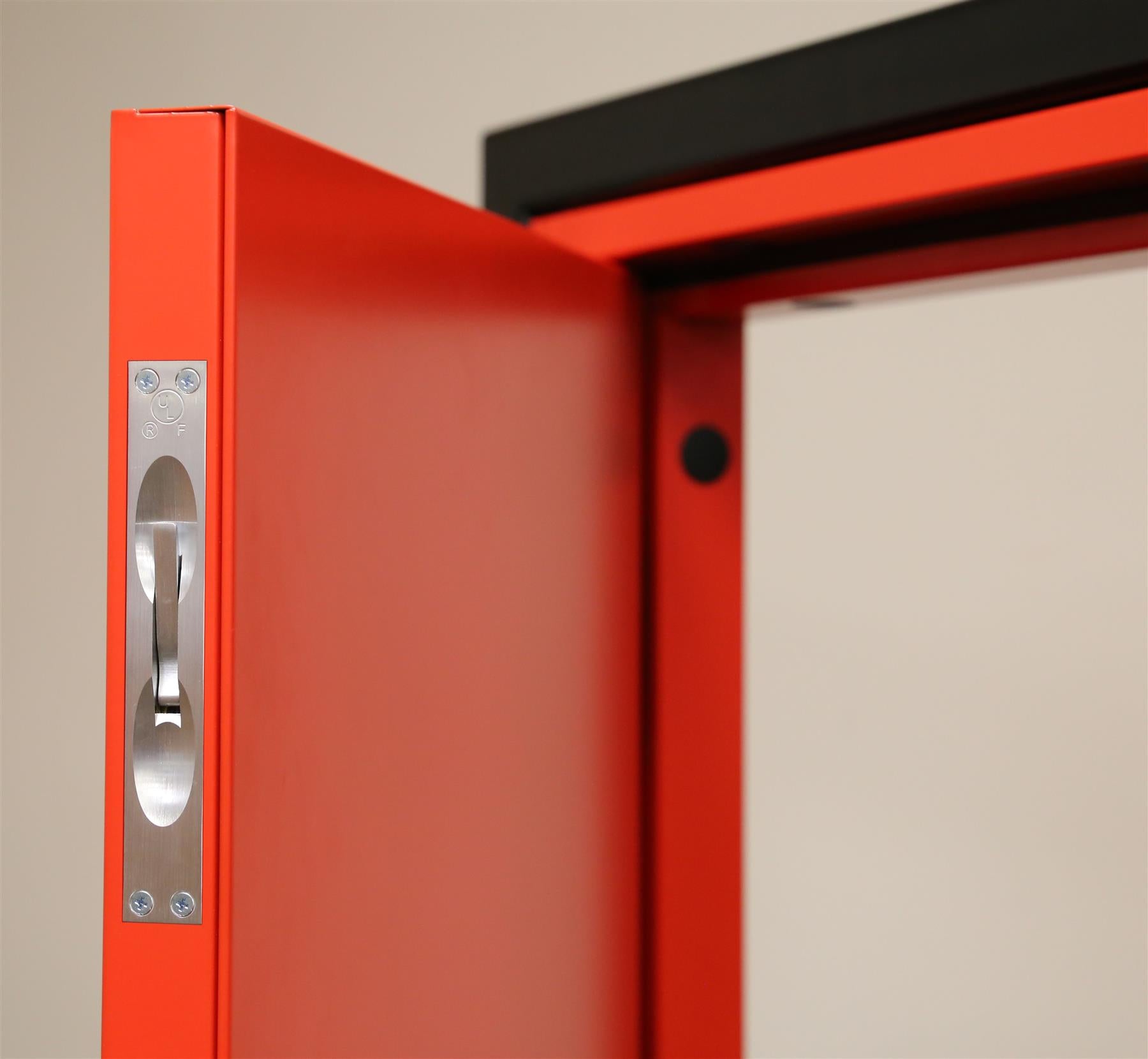

ANSI Standard Manual Flush Bolt - Z003R

These flush bolts are fitted top and bottom in the leading edge of the inactive leaf of a pair of metal doors. When both leaves are closed the flush bolts cannot be seen. With the inactive leaf bolted and secure, the active leaf can be locked and both leaves become secure. The flush bolts on this page are manufactured from brass with a satin chrome finish and are suitable for use on fire rated doors. They are manufactured to ANSI standards (American National Standards Institute) which means fixing positions do not vary and they can be fitted to pre-prepped metal doors. Z003R/BULLET electro yellow passivated bullet head available separately.

MATERIAL
Brass, satin chrome US26D finish.

BODY SIZE
Faceplate 25.4mm wide x 171.4mm high.

STRIKE PLATE SIZE
23.8mm x 57.1mm.

GUIDE SIZE
25.4mm x 50.8mm.

ROD
305mm steel rod measured from centre of face to bolt end, retracted.

THROW
19mm bolt throw, 38mm adjustable bolt head.

ANSI PREP
Fits ANSI A115 door and frame preparation.

FACE
Flat face only for use on square edged doors.

FIXINGS
Supplied with rod, guide bracket, strike plate and 8 x No 8 x ¾ FH combo screws.

TESTING
Successfully tested to EN 12051:1999. Classification 3 3 - 0 1 3 2. Copy of Exova Warringtonfire Report WIL 355513 dated 30.09.2015 available upon request.

CORROSION
Now additionally successfully tested to Grade 4 (240 hours neutral salt spray exposure) in accordance with BS EN 1670:2007 Building Hardware - Corrosion Resistance. Report No. WIL 392103 dated 30.01.2018 refers.

FIRE
Included in successful 4 hour fire test to BS 476-22:1987. Copy of WFRC Report No. C118425 available upon request.

BOX QUANTITY
Sold as singles. Outer cartons of 50.
