Description

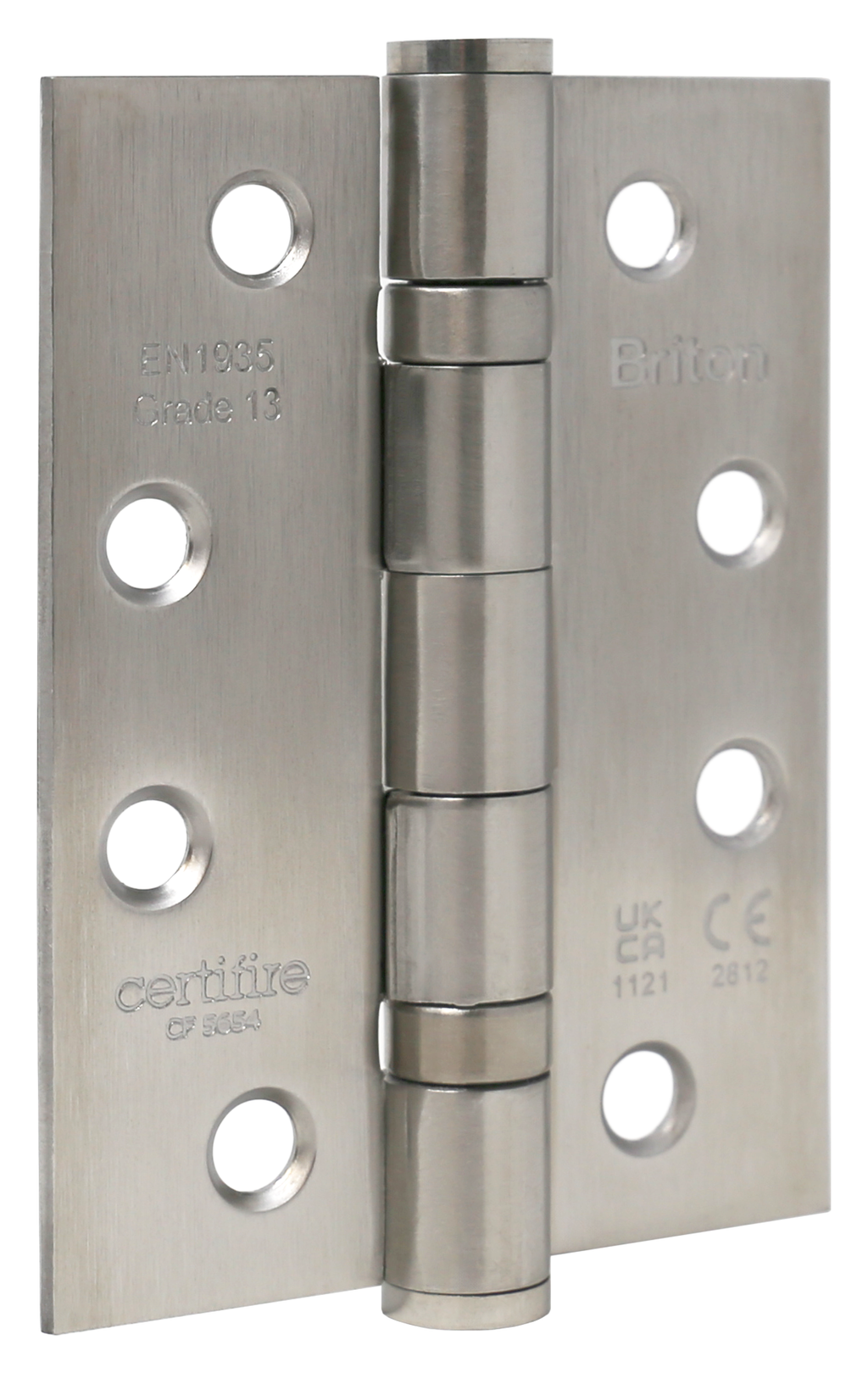

These five knuckle ball bearing hinges are CE marked to standard EN 1935:2002 Grade 13, ensuring high quality and durability. These hinges have been fire tested on a timber door for 2 hours and 4 hours on steel doors. They are suitable for fire rated timber doors and non-fire rated steel doors weighing up to 120kg, making them a versatile choice for various applications. These hinges is template drilled for consistency and accuracy during installation, and are supplied with timber screws. The dimensions of the hinges are 102x76x3mm.
Please refer to the below table for all options provided. Please contact us on 01785 282910 for MOQ's and availability or alternatively send us an email to zeroplus@allegion.com
|
Item Ref: |
Size |
Dog Bolt |
Material Grade |
Finish |
|
4801 |
102 x 76 x 3 |
|
304 |
SS; PS |
|
4802 |
102 x 89 x 3 |
|
304 |
SS; PS |
|
4803 |
102 x 102 x 3 |
|
304 |
SS; PS |
|
4801.316 |
102 x 76 x 3 |
|
316 |
SS; PS |
|
4802.316 |
102 x 89 x 3 |
|
316 |
SS; PS |
|
4803.316 |
102 x 102 x 3 |
|
316 |
SS; PS |
|

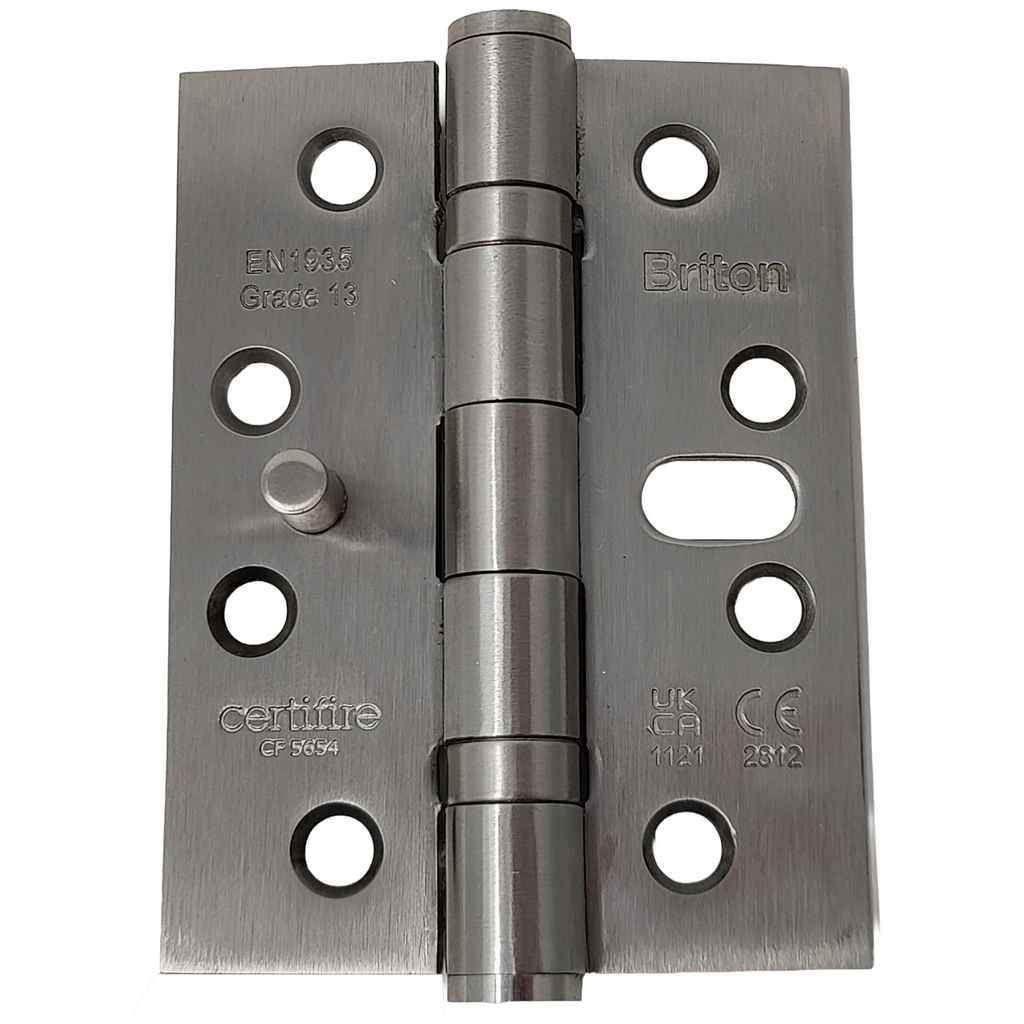

4811 |
102 x 76 x 3 |
Yes |
304 |
SS; PS |
|
4813 |
102 x 102 x 3 |
Yes |
304 |
SS; PS |
|
4811.316 |
102 x 76 x 3 |
Yes |
316 |
SS; PS |
|
4813.316 |
102 x 102 x 3 |
Yes |
316 |
SS; PS |
