Briton Single Panic Bolt - 376

EN 1125 Panic doors in Public Areas, Two Point Locking.

Push bar and Vertical Panic Bolt, Timber Doors, Steel Doors, Silver finish

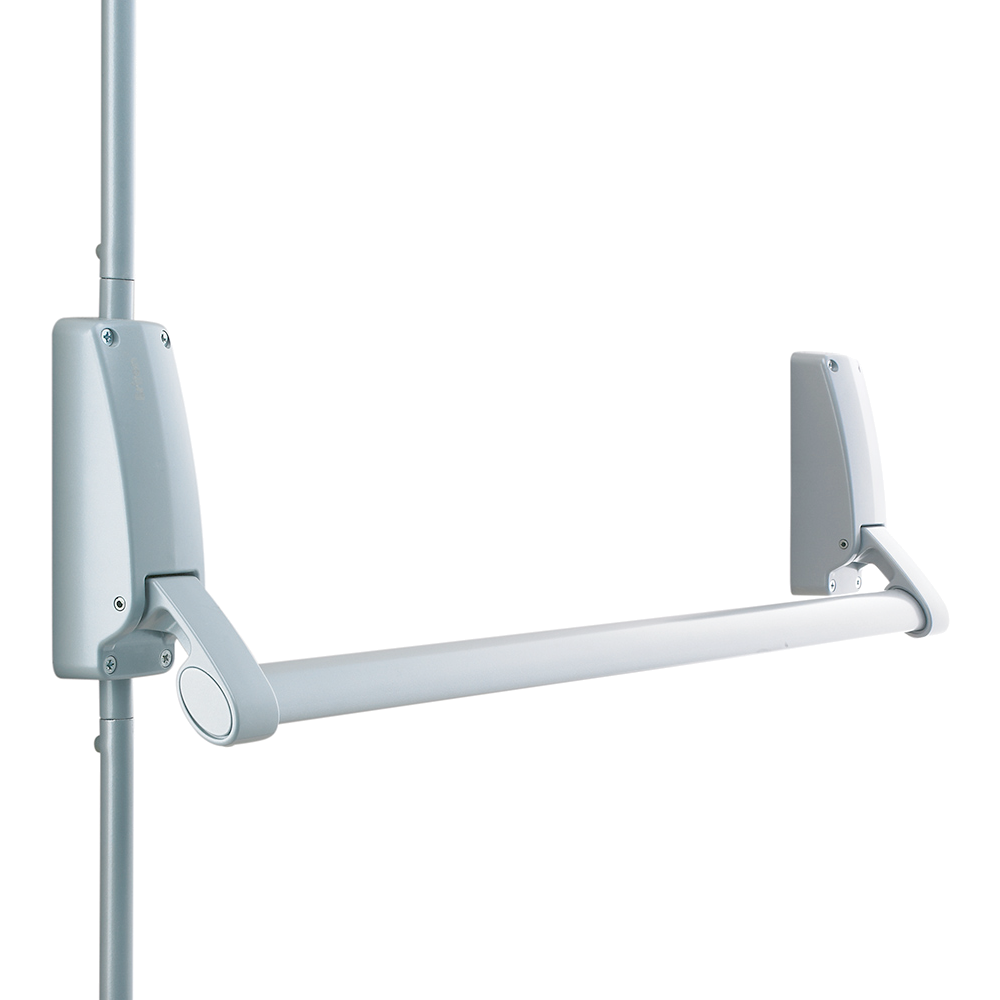

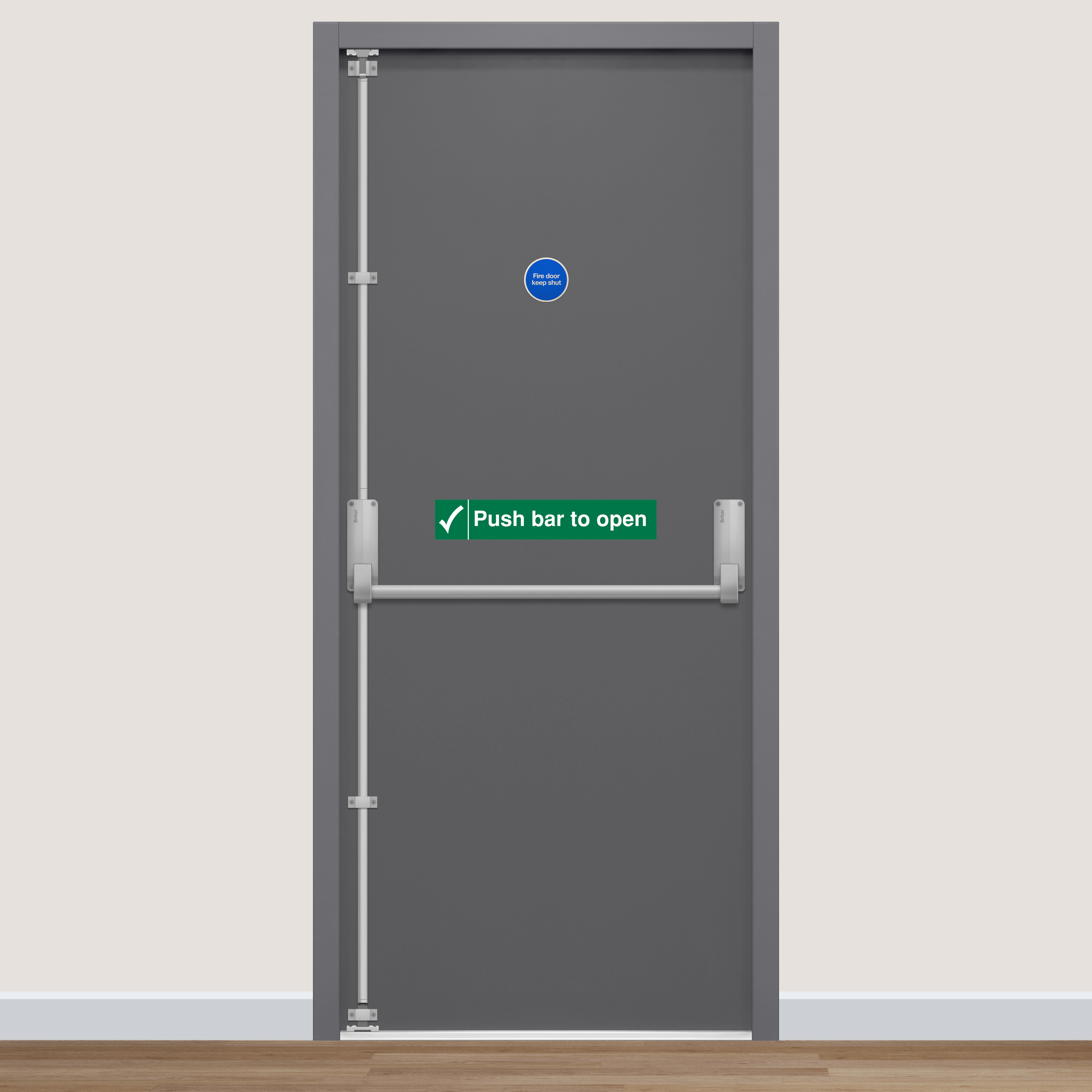

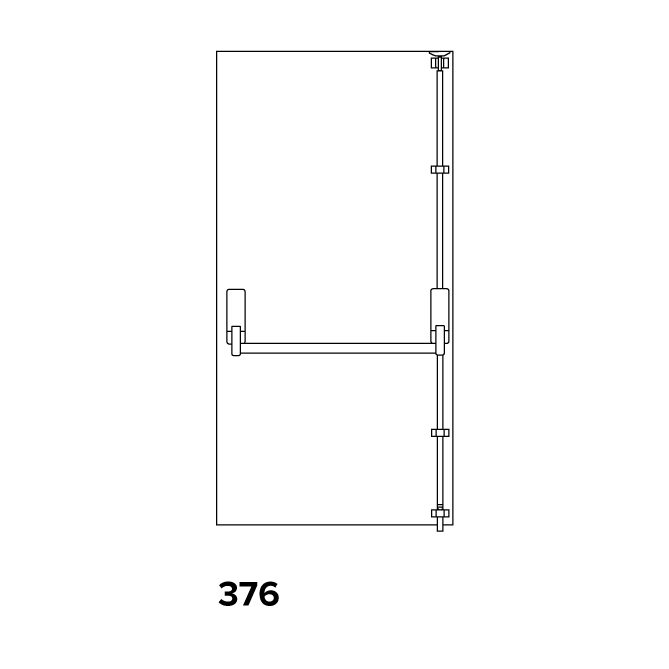

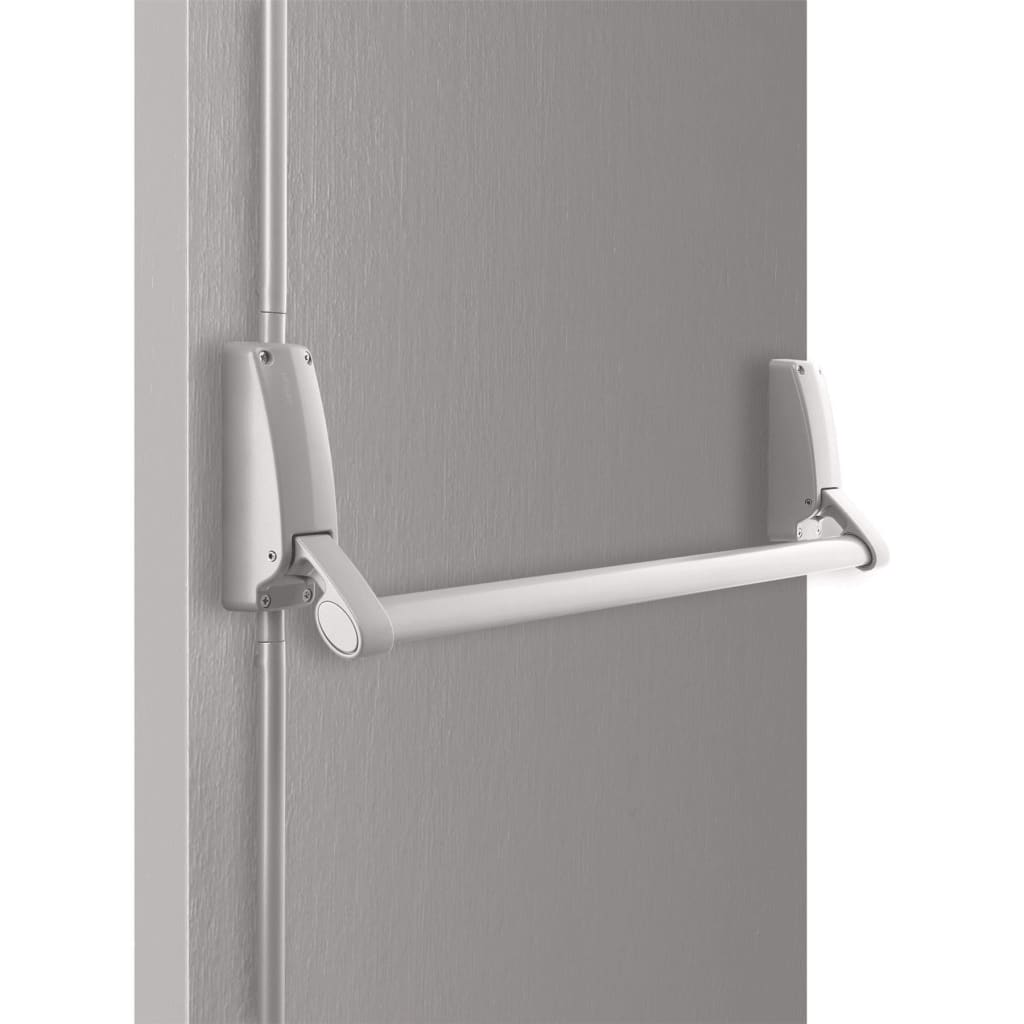

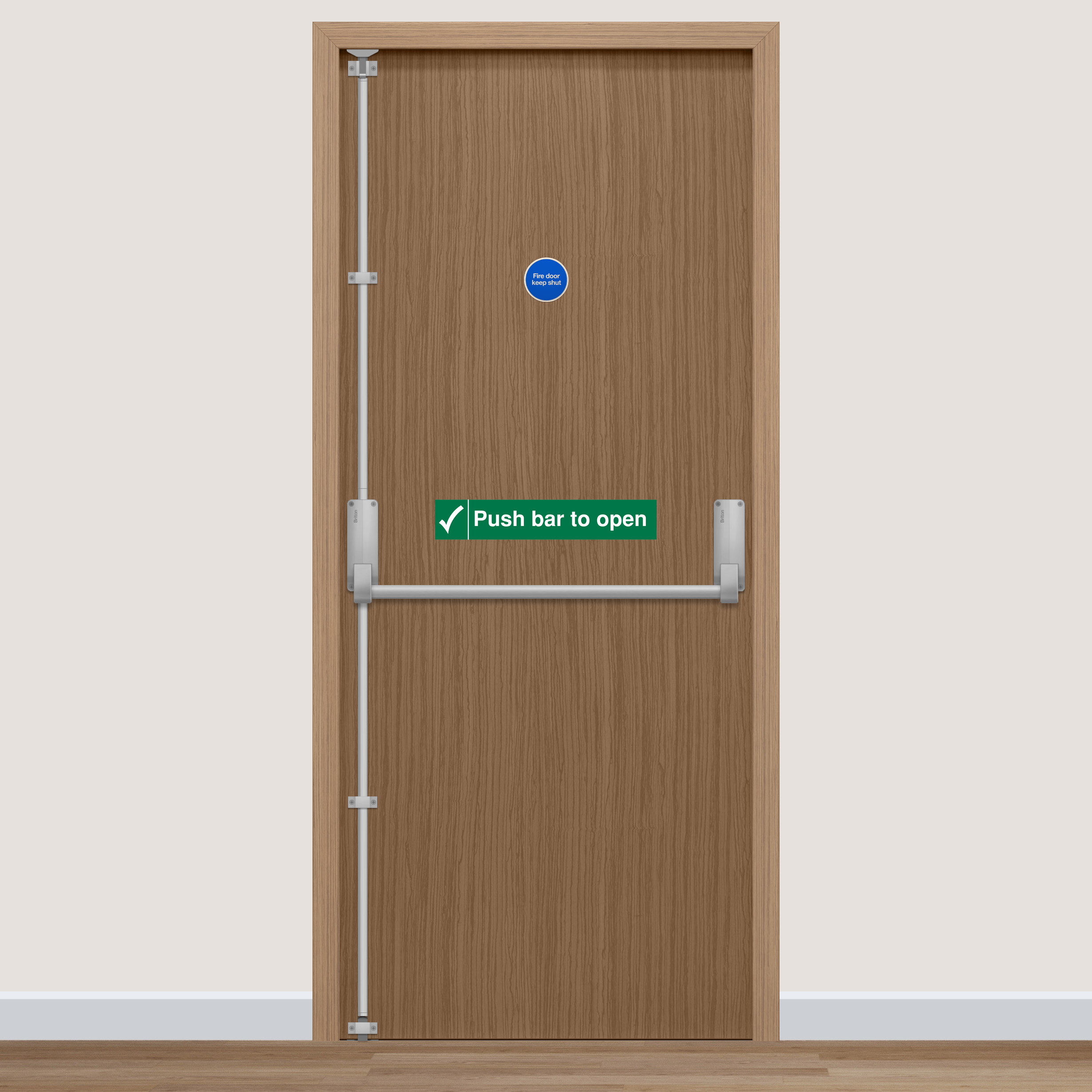

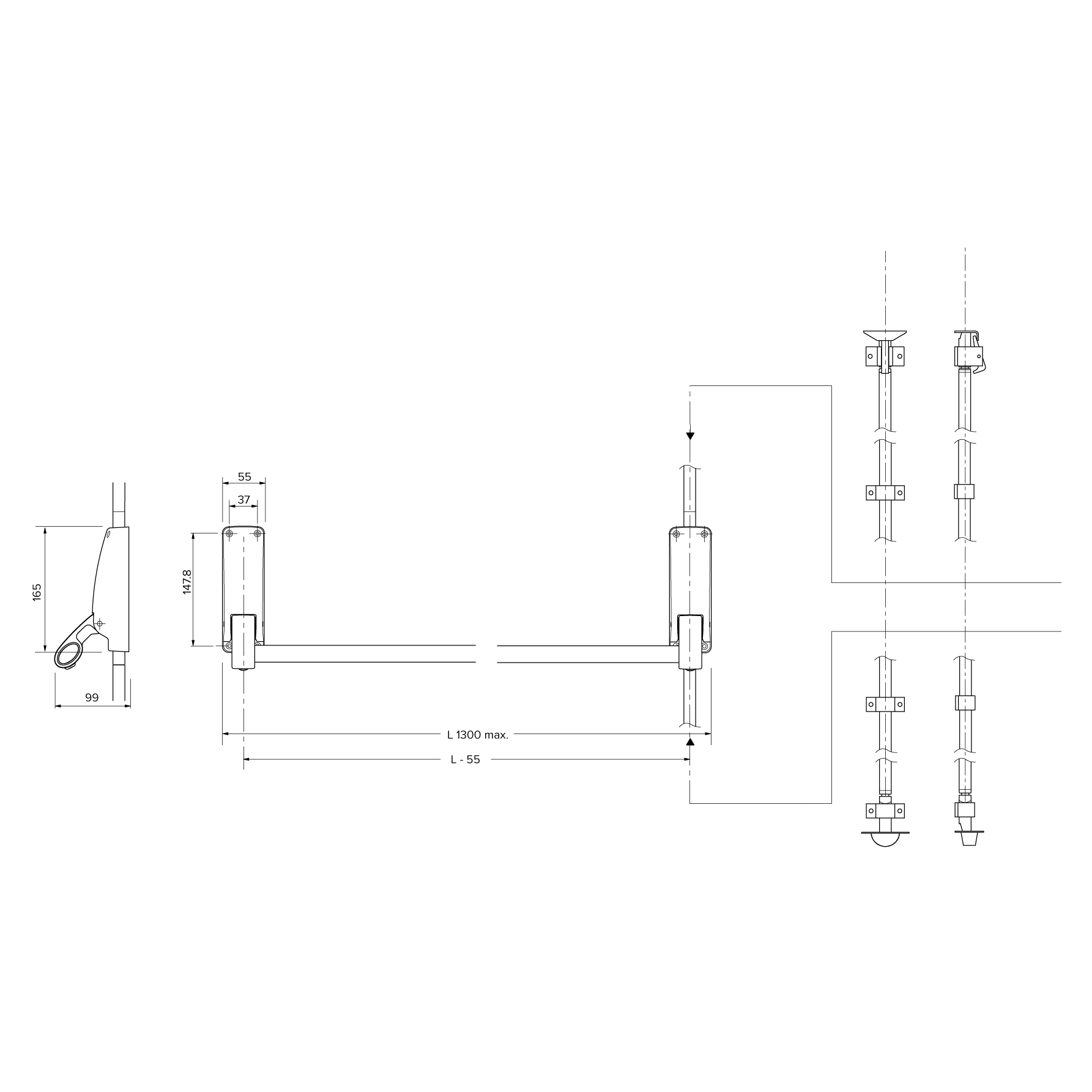

The Briton 376 panic exit device with vertical bolts. Is a surface mounted push bar panic exit device with vertical bolts operating top and bottom of the door. Has two-point locking for extra security. Anti-thrust prevents forced latch retraction. Can be reversed of site. Has adjustable top and bottom shoots. For use on fire and smoke doors 665mm to 11300mm wide, max 2500mm height and maximum weight 200kg. Tubular steel cross bar and shoots can be cut on-site to suit door width and height. Supplied with fixings and self-adhesive “Push Bar to Open” signage.

Testing – Is fire tested to EN 1634 on timber doors to achieve a 2-hour fire rating and 4 hours on metal doors. UKCA marked to EN 1125 (1121-CPR-AAA7569). CE marked to EN 1125 (2812-CPR-AAA0011). Certifire Approved (CF5506). Environmental Product Declaration in accordance with ISO 14025 and EN 15803. Tested in excess of 200,000 cycles.

376.SE – Push bar and vertical  panic bolt with fixings for timber doors. Silver finish.

376M.SE - Push bar and vertical  panic bolt with fixings for metal doors. Silver finish.

Additional Options that suit the 376-push bar and vertical panic bolt. Two-point locking to EN 1125 Panic doors in public areas.

370PLTM – Pullman kit, Pullman latches offer increased security and provide a smooth latching action, a quiet alternative to the traditional top trip catch. Pullman fixing kits supplied separately to upgrade existing installations.

376/1021 – Dogging End Box – Replacing the standard end box of the operating device with the dogging end box enables the bolts or latchbolt to be held in the withdrawn position to allow free passage.

380/1011 – Alarm end box – A replacement end box incorporating a microswitch that allows standard models to be connected to a separate alarm system. Activated by movement of the push bar, it detects and alerts the user of any unauthorised activation.

376ELTS.SE– Extra-long shoot bolts. Extra long top shoots are designed to be used on doors that require the push bar to be in a lower position e.g., schools. It can also be used doors that exceed 2500mm up to 3350mm high.

376FFKP – Flush face keeper plate. For flush fitting doors and frames a surface mounted flush face keeper plate can be used to secure the bolt.

1413.LE – Outside Access Device Lever Operated – For doors 40 – 100mm thick. Can be used on timber and metal doors. Anti-Vandal design allows the lever to rotate when the unit is locked. Supplied with 40mm euro profile cylinder. Locked or unlocked by key operation. Is BS8300 compliant. Lever is reversible on site.

1413.KE – Outside Access Device Knob Operated - For doors 40 – 100mm thick. Can be used on timber and metal doors. Supplied with 40mm euro profile cylinder. Locked or unlocked by key operation. Is BS8300 compliant.

9260 -Digital Code Lock -  Light duty mechanical push button lock with lever operation. Suitable for low traffic applications, can be used on internal and external doors. Access is by 4 – 6-digit code. Supplied with extra-long spindles for doors 40mm to 70mm thick. Can be used on either timber or steel doors. Has reversible lever so can be used on left and right-handed doors. Code changed by removing unit from the door. Easy to retrofit.
