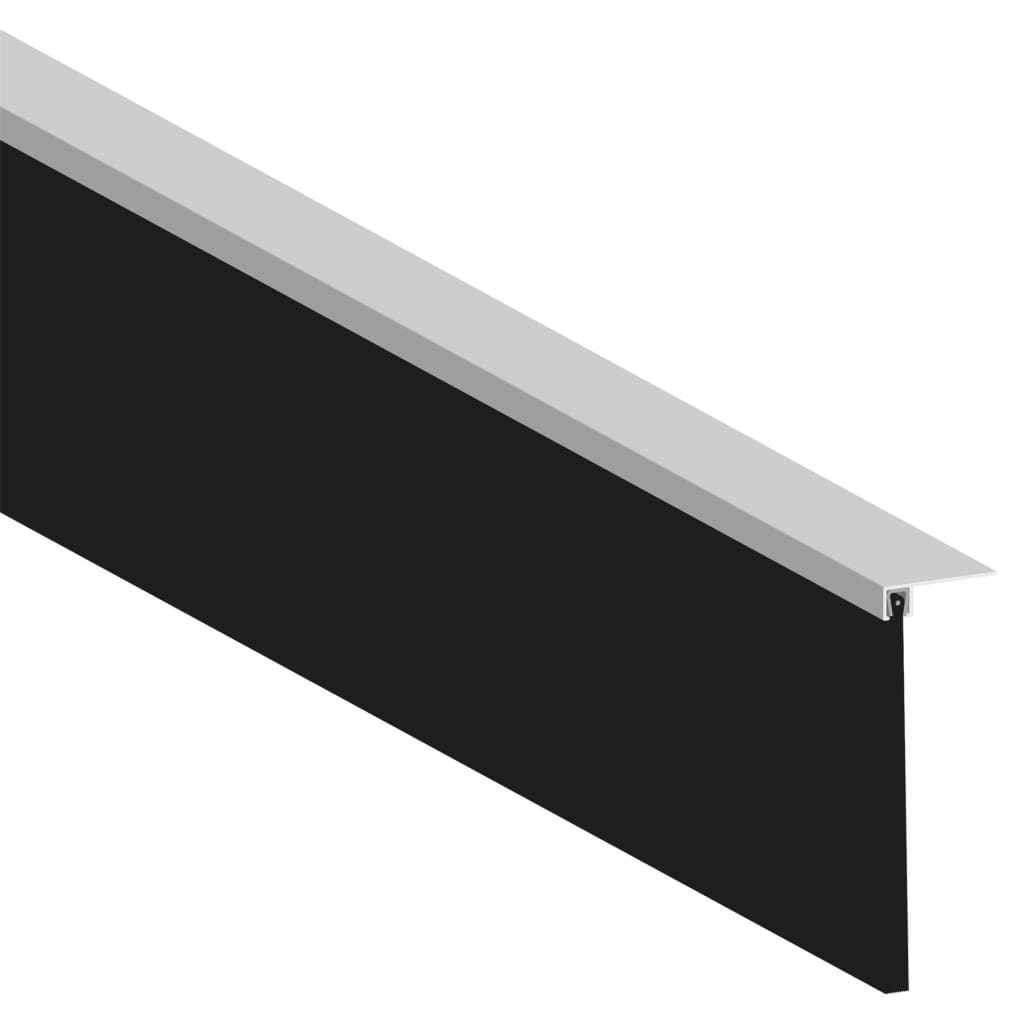

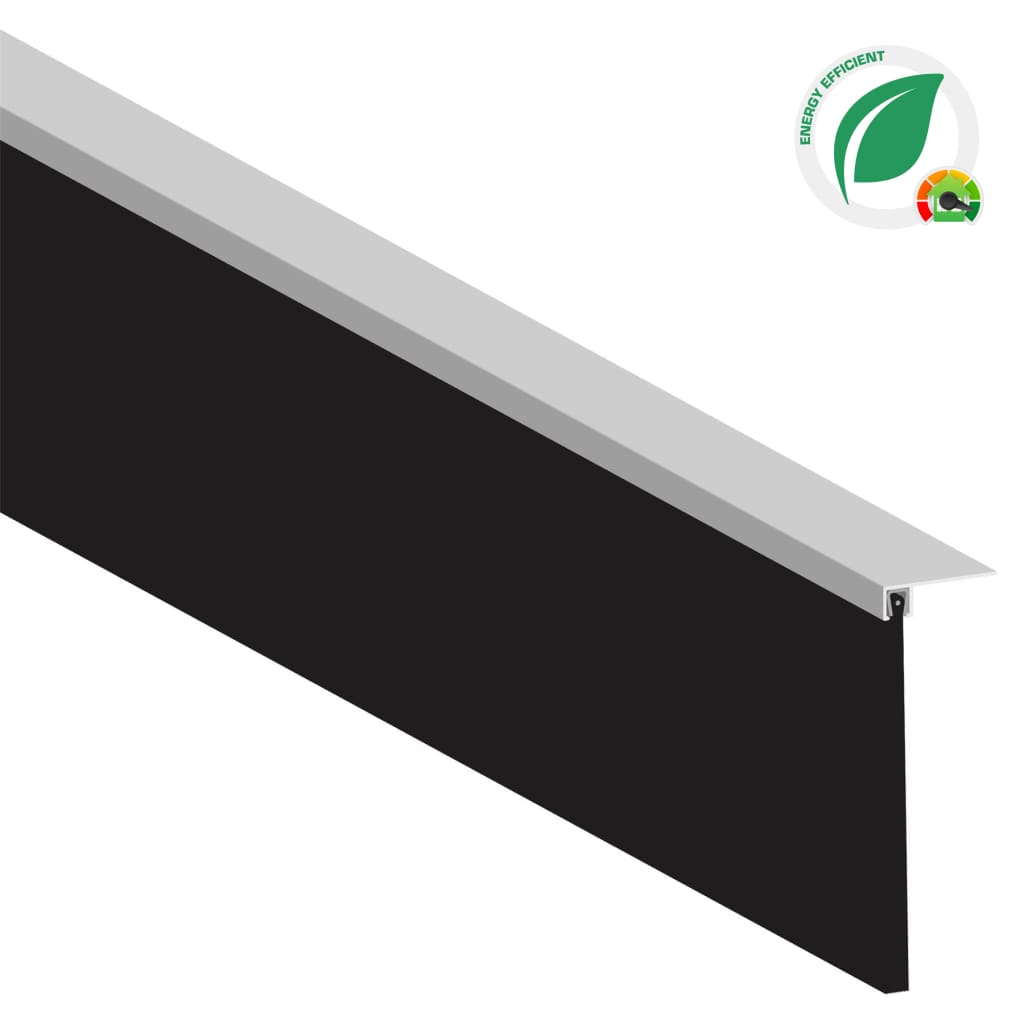

Brush Strip No.6, 90° Right Angle Carrier

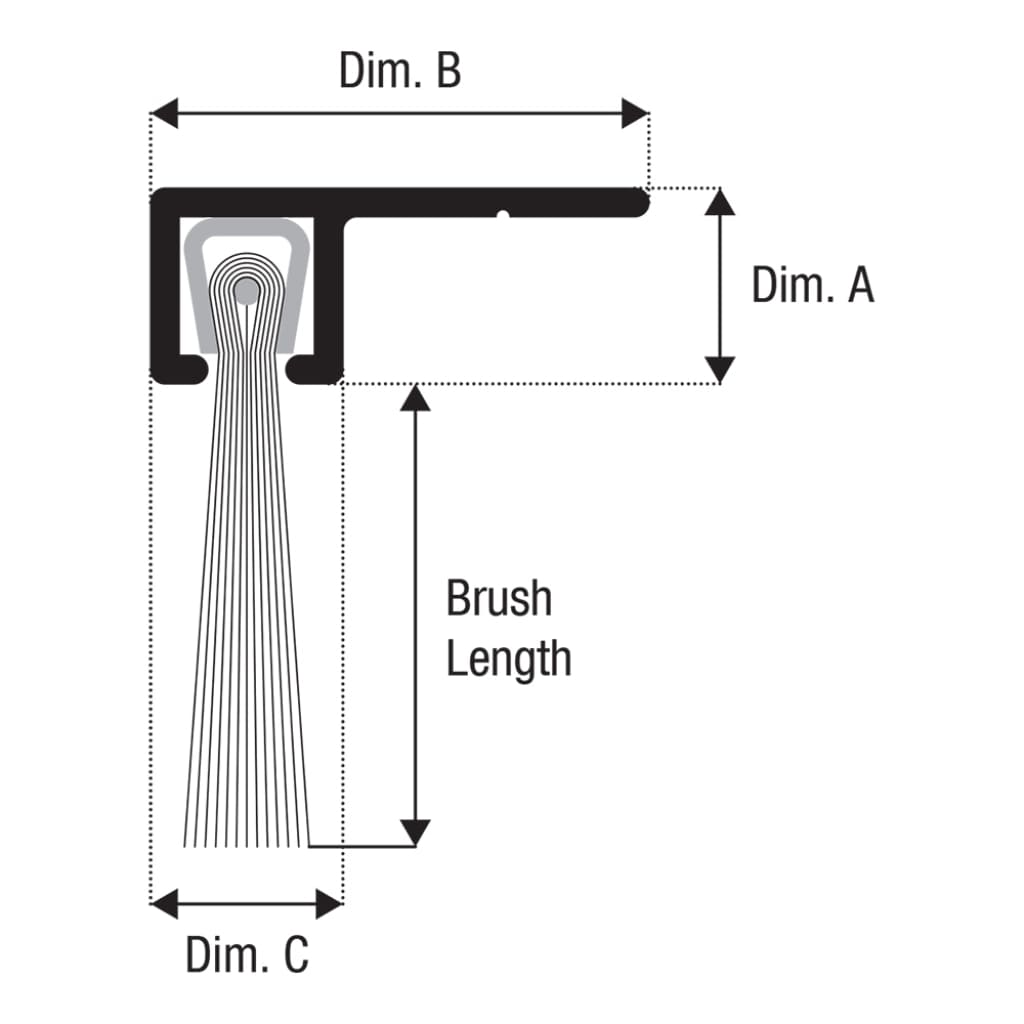

Available in three aluminium sections (180°, 45° and 90°), each in six different sizes. Standard lengths are 2000mm, 2500mm and 3000mm. The aluminium fixing carrier is supplied silver mill finish and the filament is type 6 black nylon. It is hard wearing with a working temperature from -40°C to +100°C. The brush can also be supplied without the aluminium fixing carrier if required (see cam strips on opposite page). The brush length sizes quoted are the mm of brush strip protruding out of the aluminium carrier.All sections can be cut to length using a fine tooth saw. It is important that the galvanised steel channel which houses the nylon brush is then sealed to avoid filament loss. This can be achieved by pinching the end of the channel with pliers or wire cutters. All seals should be fitted with the door in the closed position, so that the brush filaments are in firm contact with the mating surface. Care should be taken not to overflex the trim against the mating surface.
