Corni Millenium Single Panic Bolt - CML1240

CORNI MILLENIUM PUSH & PULL is a complete modular range of surface mounted push and pull panic exit devices manufactured by ASSA ABLOY Italia S.p.A. It is designed so the touch-bar sits off the door which makes it possible to reach down behind the touch-bar and pull the door closed.

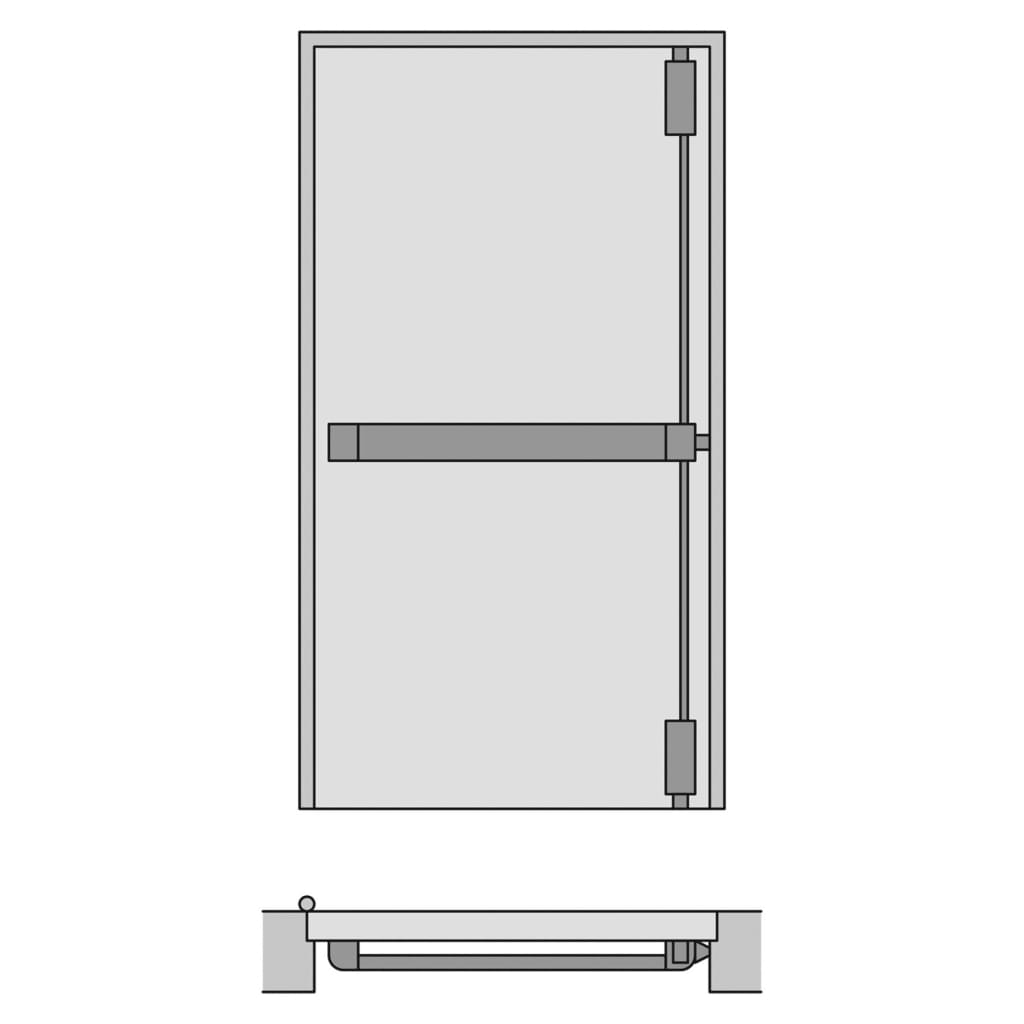

The panic bolt patterns comprise a panic latch and a modular transformation kit (vertical or horizontal) which includes stainless steel Pullman latches, steel rods and aluminium rod covers as standard. An added bonus is that the same transformation kits are used with the CORNI COMPOSIT NEW range. This modularity helps to reduce customers' stock levels. Single panic bolts are supplied with three point locking as standard; top, bottom and central. These may be converted to two point locking top and bottom by the use of a blanking plate to nullify the central latch if required. CORNI MILLENIUM PUSH & PULL is suitable for use on mid-rails of doors made of steel, timber, aluminium and PVCu.

Different latch kits offer the option for both Pullman latches to shoot vertically top and bottom, or shoot horizontally (making three horizontal latches at the top, middle and bottom), or with one Pullman latch shooting vertically and one shooting horizontally (although this makes the unit handed). A horizontal shooting bottom latch avoids the need to drill the threshold and eases installation. The range conforms to the European standard EN 1125: 2008 on panic exit devices, is CE marked, and is suitable for use on fire rated doors. The standard finishes are black and simulated stainless steel but products can also be supplied grey, white, red and gold to special order.

The lever handle outside access device is easily and quickly installed, and is supplied with a 40mm long euro-profile standard differ single cylinder. It is suitable for doors up to 90mm thick. The lever handle is available in one function only and the key can be taken away and the door left unlocked for free access.

CE MARKING
CE Marked. Classification 3-7-7-B-1-3-2-2-B-A.

STANDARDS
Conforms to EN 1125: 2008 for doors on hinges or pivots weighing over 200kg, less than 2520mm high and 1320mm wide. Type B with touch-bar operation. Projection of the device from the door surface less than 100mm (Class 2), 66mm actual. Tested to 200,000 cycles. ICIM Product Certificate No. 010AD/4 dated 20.11.2013. Certificate of Conformity No. 0425-CPR-0591 dated 19.10.2014. Copies available on request. Refer to our website for DoP No. PED0016.

FIRE
Suitable for use on fire and smoke door assemblies.

CONSTRUCTION
Stainless steel latch bolts, steel mechanism, steel rods and aluminium rod covers. Aluminium touch-bar in painted or plated finishes.

FINISH
Mechanism standard finishes black and simulated stainless steel (IN) but different body colours may be available to special order depending on quantity, including grey (GR), white (WH) and gold (AU). Touch-bar standard finishes black (N) and nickel plated to match satin stainless steel (IN) but also available silver (AR), red (R), white (WH) and gold (AU) to special order depending on quantity.

HANDING
Reversible, non-handed centre latch mechanism. Suitable for single leaf doors or pairs of doors, active or inactive leaf.

SIZES
Standard vertical rods suit doors up to 2450mm with touch-bar mounted at 900mm from FFL (and 2650mm if mounted at 1100mm) but the NF9821 extended rod increases this by 630mm to 3080mm and 3280mm respectively. The standard touch-bar is 900mm long but is also available 1200mm and 1500mm. Touch-bars should be cut as close to the opening width as possible but not less than 60% of the opening width. Please note doors above 2520mm high and 1320mm wide are outside the scope of the CE certification.

INSTALLATION
Full fitting details and fixings supplied. Recommended touch-bar height 900-1100mm from FFL. Stainless steel latch strike plate included with two spacer shims. Nylon blanking plates included.

OAD
Optional external lever handle OAD suitable for door thickness up to 90mm if outside access is required. The key can be taken away leaving the OAD unlocked and allowing free access from outside. The outside access device cannot be locked and unlocked from inside the door. The Millenium OAD is different to the Ministar Jolly OAD.

MODULARITY
Modular latch/rods transformation kits for one, two or three locking points. The same latch and rod kits operate with COMPOSIT NEW but not with any other CORNI panic bolt ranges.

SIGNAGE
Supplied with free issue "PUSH BAR TO OPEN" sign, 300x60mm, white on green self-adhesive.

DOGGING DEVICE
Supplied with dogging device as standard, which may be deactivated. Dogging devices should not be used on fire rated doors.

MICRO-SWITCH
Central mechanism available with micro-switch to detect when device is operated or to work with a delayed egress system, ref NF19700/B.

CAD DRAWING
Please contact us for details. DXF format CAD files available.
