Corni Minipad 423 Double Door Emergency Bolt Set - CM2481

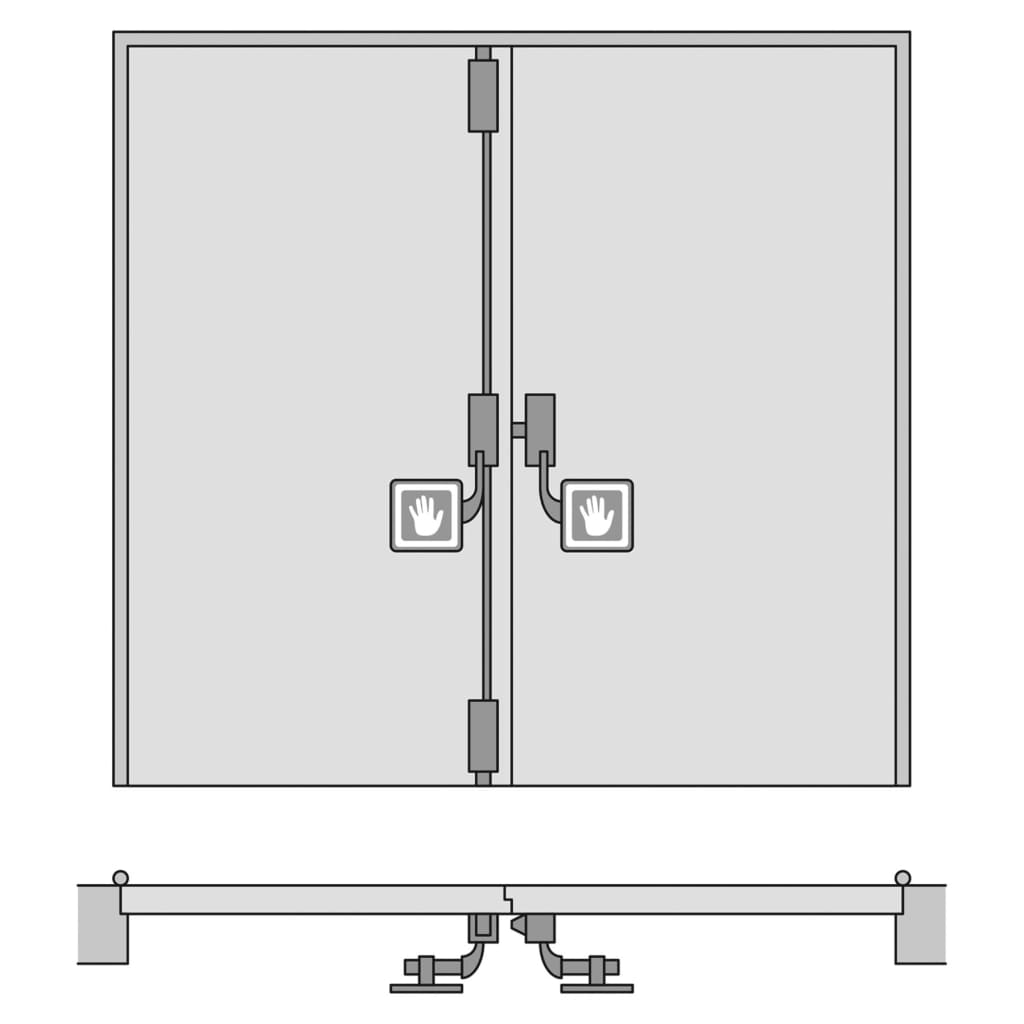

CORNI MINIPAD 423 is a surface mounted emergency exit device operated by a push-pad manufactured by ASSA ABLOY Italia S.p.A. It utilises the same modular transformation kits that are used with the CORNI MINISTAR 429 range on page 166 and the CORNI TOUCH 445 touch-bar range on page 170. This modularity helps to reduce customers' stock levels. The range has stainless steel pullman latches as standard, and single bolts are supplied with three point locking as standard; top, bottom and central. These may be converted to two point locking top and bottom by the use of a blanking plate to nullify the central latch if required. CORNI MINIPAD 423 is suitable for use on mid-rails of doors made of steel, timber, aluminium and PVCu.

Different latch kits offer the option for both pullman latches to shoot vertically top and bottom, or shoot horizontally (making three horizontal latches at the top, middle and bottom), or with one pullman latch shooting vertically and one shooting horizontally. A horizontal shooting bottom latch avoids the need to drill the threshold and eases installation. The range conforms to the European standard EN 179: 2008 on emergency exit devices, is CE marked, and is suitable for use on fire rated doors. The standard finish is black body with green and white pad.

The "Jolly" lever handle outside access device is easily and quickly installed, and is supplied with a 40mm long euro-profile standard differ single cylinder, but can be supplied keyed alike or master keyed to special order. By simply removing the screws in the back of the unit prior to installation, customers can replace the standard differ cylinder with their own master keyed cylinder without the need for any drilling. The "Jolly" handle is available in one function only and the key can be taken away and the door left unlocked for free access. Simple external euro cylinder and escutcheon kits are available for low-traffic doors.

CE MARKING
CE Marked. Classification 3-7-7-B-1-4-2-1-B-A (now Grade 4 240 hours salt).

STANDARDS
Conforms to EN 179: 2008 for doors on hinges or pivots weighing over 200kg, less than 2520mm high and 1320mm wide. Type B with push-pad operation. Projection of the device from the door surface less than 150mm (Class 1), 115mm actual. Tested to 200,000 cycles. ICIM Product Certificate No. 090BD/0 dated 28.03.2013. Certificate of Conformity No. 0425-CPD-2540 dated 28.03.2013. Copies available on request. Refer to our website for DoP No. EED0001.

FIRE
Suitable for use on fire and smoke door assemblies.

CONSTRUCTION
Stainless steel latch bolt, steel mechanism, steel rods and steel covers. Black push-pad in nylon with glass fibre added. Mazak arm.

FINISH
Standard body finish black but also available simulated stainless steel (IN), grey (GR), white (WH), chrome (CR), or gold (AU) to special order depending on quantity. Pad has white hand on green background.

HANDING
Minipad latch mechanism is handed; please specify LH or RH when ordering. Photographs on this page show LH. Suitable for single leaf doors or pairs of doors, active or inactive leaf.

SIZES
Pad measures 95mm square. Standard vertical rods suit doors up to 2200mm high, but 3000mm rods available.

INSTALLATION
Easy installation on very narrow profiles without any backplate. Full fitting details and fixings supplied. Recommended pad height 900-1100mm from FFL. Steel latch strike plate included with four spacer shims. "Jolly" handle adapter included.

OAD
Optional external "Jolly" handle OAD suitable for door thickness up to 85mm if outside access is required. The key can be taken away leaving the OAD unlocked and allowing free access from outside. Simple single cylinder kits with escutcheon also available for doors up to 60mm thick. Key blanks available ref N0180044800.

MODULARITY
Modular latch/rods transformation kits for one, two or three locking points. The same kits operate with MINISTAR 429 and TOUCH 445.

SIGNAGE
Supplied with free issue "PUSH PAD TO OPEN" sign, 300x60mm, white on green self-adhesive.

DOGGING DEVICE
Not available with dogging device.

MICRO-SWITCH
Not available with micro-switch.

CAD DRAWING
Please contact us for details. DXF format CAD files available.
