Different latch kits offer the option for both pullman latches to shoot vertically top and bottom, or shoot horizontally (making three horizontal latches at the top, middle and bottom), or with one pullman latch shooting vertically and one shooting horizontally (although this makes the unit handed). A horizontal shooting bottom latch avoids the need to drill the threshold and eases installation. The range conforms to the European standard EN 1125: 2008 on panic exit devices, is CE marked, and is suitable for use on fire rated doors. Latchbolts are stainless steel and latchbolt covers mild steel as standard. The standard finish is black, with the exception of the touch-bars which are supplied red (RAL3000) as standard but are available in other finishes to special order depending on quantity.
The "Jolly" lever handle outside access device is easily and quickly installed, and is supplied with a 40mm long euro-profile standard differ single cylinder, but can be supplied keyed alike or master keyed to special order. By simply removing the screws in the back of the unit prior to installation, customers can replace the standard differ cylinder with their own master keyed cylinder without the need for any drilling. The "Jolly" handle is available in one function only and the key can be taken away and the door left unlocked for free access. There is an alternative set of lever handle on backplate with extended euro cylinder, or a simple single external cylinder and escutcheon kit for occasional key access.
CE Marked. Classification 3-7-7-B-1-3-2-2-B-A.
Conforms to EN 1125: 2008 for doors on hinges or pivots weighing over 200kg, less than 2520mm high and 1320mm wide. Type B with touch-bar operation. Projection of the device from the door surface less than 100mm (Class 2), 63mm actual. Tested to 200,000 cycles. ICIM Product Certificate No. 049AD/3 dated 06.03.2012. Certificate of Conformity No. 0602-CPD-2009 dated 11.04.2012. Copies available on request. Refer to our website for DoP No. PED0020.
Approved for use on fire and smoke door assemblies.
Stainless steel latch bolts, steel mechanism, steel rods and steel covers. Aluminium touch-bar.
Standard finish black body and red touch-bar RAL3000. Touch-bar also available white, black, green or anodised silver to special order depending on quantity.

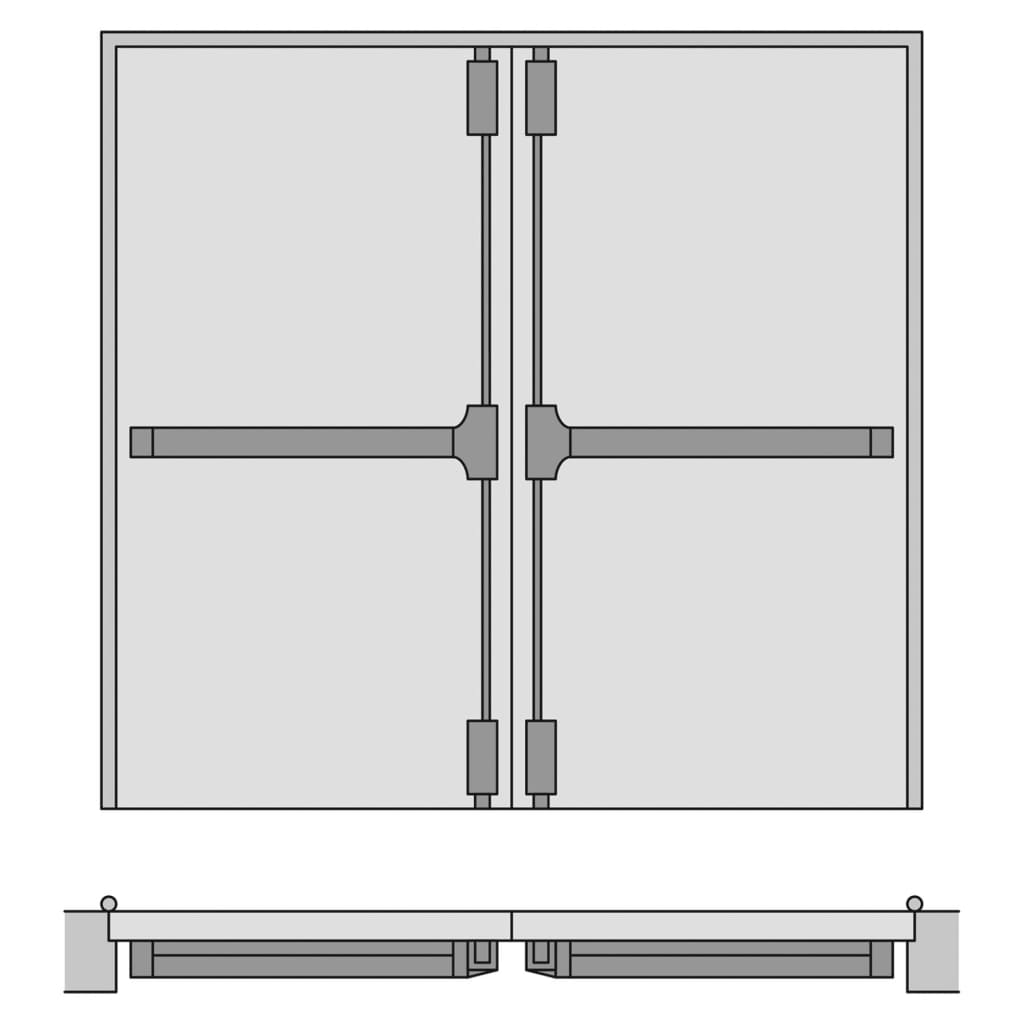

Reversible, non-handed mechanism. Suitable for single leaf doors or pairs of doors, active or inactive leaf.
Standard vertical rods suit doors up to 2200mm high but 3000mm rods available. Standard mechanism width 840mm to suit doors 650-850mm (max cut 200mm), and 1300mm wide to suit doors 850-1310mm (max cut 460mm) (cut to size on site). Other sizes available to special order to suit doors 350-1310mm wide. Touch bars should be cut as close to the opening width as possible but not less than 60% of the opening width.
Easy installation. Full fitting details and fixings supplied. Recommended bar height 900-1100mm from FFL. Steel latch strike plate and four plastic spacer shims included.
Optional external "Jolly" handle OAD suitable for door thickness up to 60mm (key can be taken away leaving the OAD unlocked and leaving free access from outside). Alternative sets of lever handle on backplate with extended euro cylinder or simple single cylinder and escutcheon for doors up to 60mm thick for use on low-traffic doors. Key blanks available ref N0180044800.
Modular latch/rods transformation kits for one, two or three locking points. The same kits operate with MINISTAR 429 and MINIPAD 423.
Supplied with free issue "PUSH BAR TO OPEN" sign, 300x60mm, white on green self-adhesive.
Supplied with dogging device as standard. Dogging devices should not be used on fire rated doors.
Available with micro-switch to special order. This is used to detect when the device is operated, or used as part of a delayed egress system.
Please contact us for details. DXF format CAD files available.
