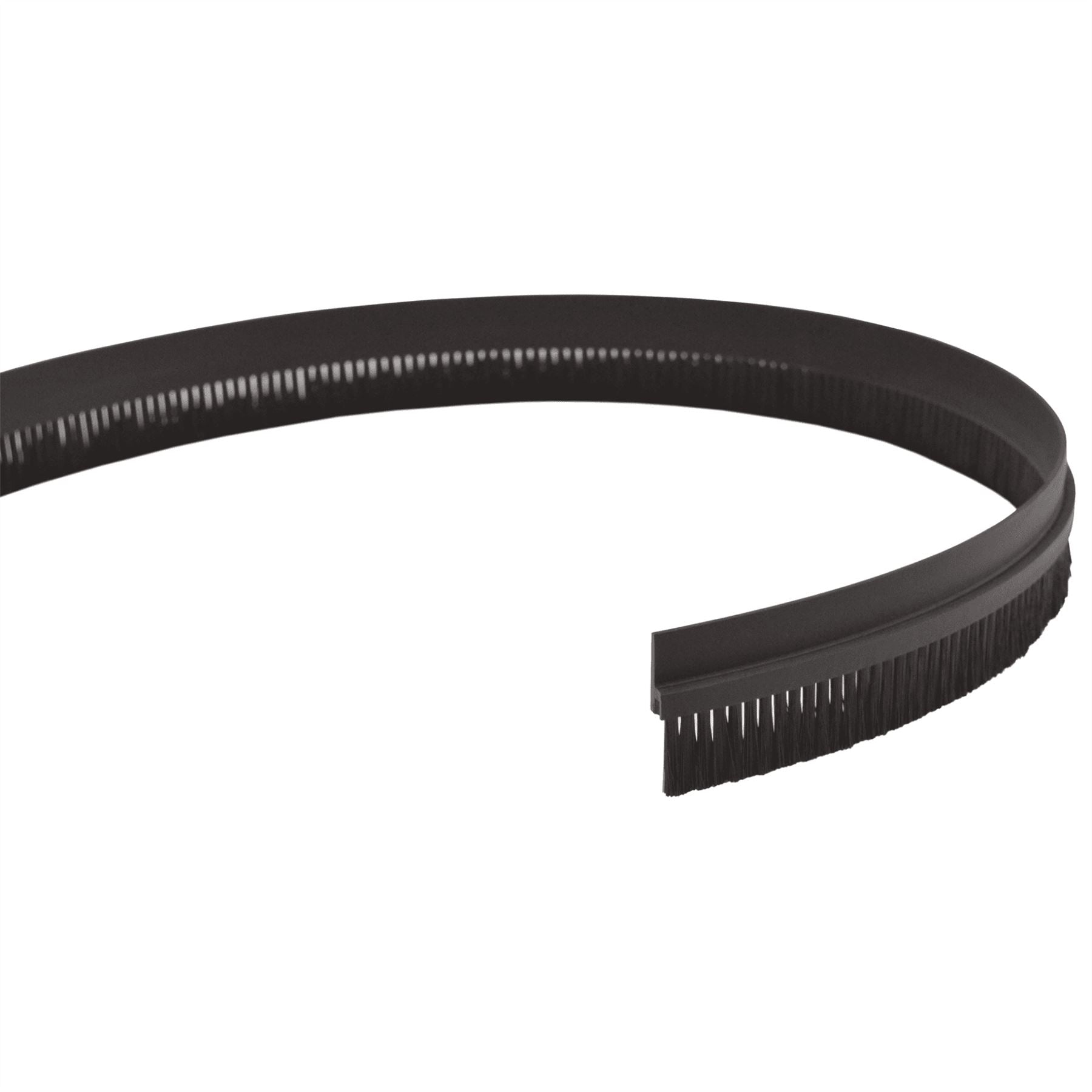

Flexible Brush Strip Seal, H Profile

In response to customer requests for a flexible brush strip that can be fitted to radius doors and surfaces, we have introduced a new range of flexible brush strip seals. They adapt easily to different shapes thanks to their flexible profile. They can be used for multiple applications which include sealing, guiding, wiping, slowing down and pressing.

Available in two different profiles; "H" surface fixing profile of 180° standard carrier for fitting to the face of the door and "C" clip on profile for clipping onto sheet metal. Each profile is currently available in one size only. However there are four different brush sizes which fit into the profiles - 20mm, 30mm, 40mm and 50mm trim lengths. This dimension is the length of the brush trim out of the carrier (projection).

The sturdy plastic fixing carrier is supplied matt black as standard, and the filament is Type 6 black nylon. It is UV and ozone resistant, chemical resistant and resistant to temperatures from -40°C to +125°C. Both profiles can be cut to size on site using wire cutters or a fine toothed saw. There are no fixing holes in either profile as this gives the option to fix with glue or drill through the profile on site and fix with screws ("H" profile only). The "C" profile clips onto sheet metal 2.5mm thick.

These new seals are available in 25 metre coils or cut to length; standard sizes 1000mm, 2000mm, 2500mm and 3000mm.
