Heavy Duty Multi-Point Lock

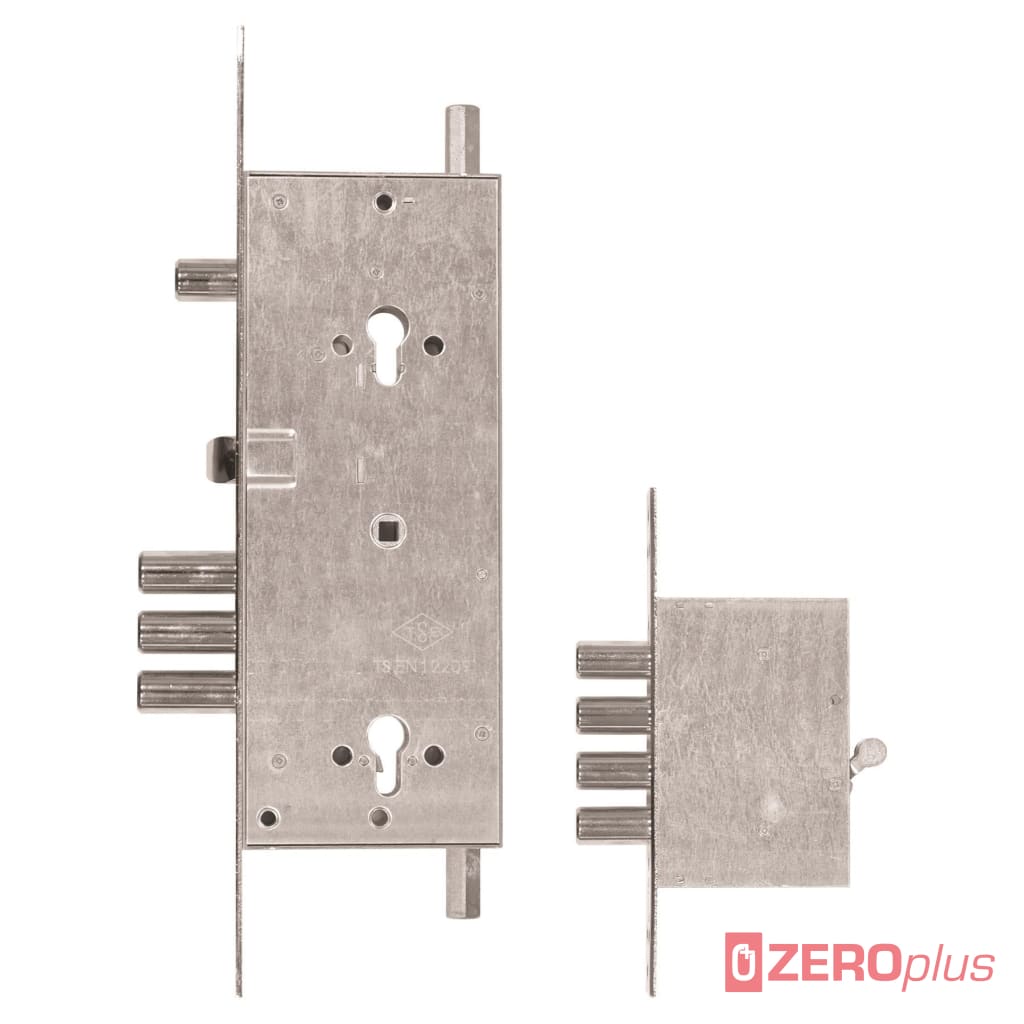

The Z415G is a heavy duty multi-point lock for steel doors. It features 15 geometrical locking points for enhanced attack resistance, plus an extended bolt throw of 42mm. The Z415G’s heavy-duty structure, having a central lock case of 280mm x 111mm, and geometric locking feature, are empowering assets to any tough, well-built steel door. Unlike most conventional multi-point locks just offering various locking points along the leading edge of the door, the Z415G also has locking points across the head and along the bottom of the door. These extra locking points, along with the upper and lower main lock bodies, are operated by fully concealed adjustable rods.

The main central lock body has a patented cogwheel mechanism that is compatible with cam cylinders and enables the large 42mm bolt throw with only two full key turns (720º). In addition, this special multi-point lock accommodates two cylinders, for extra protection and advanced lockout capabilities. However, just one cylinder can be used if preferred, reducing the system to 14 locking points. Also, the main central lock can be purchased as a standalone item, POA.

APPLICATION

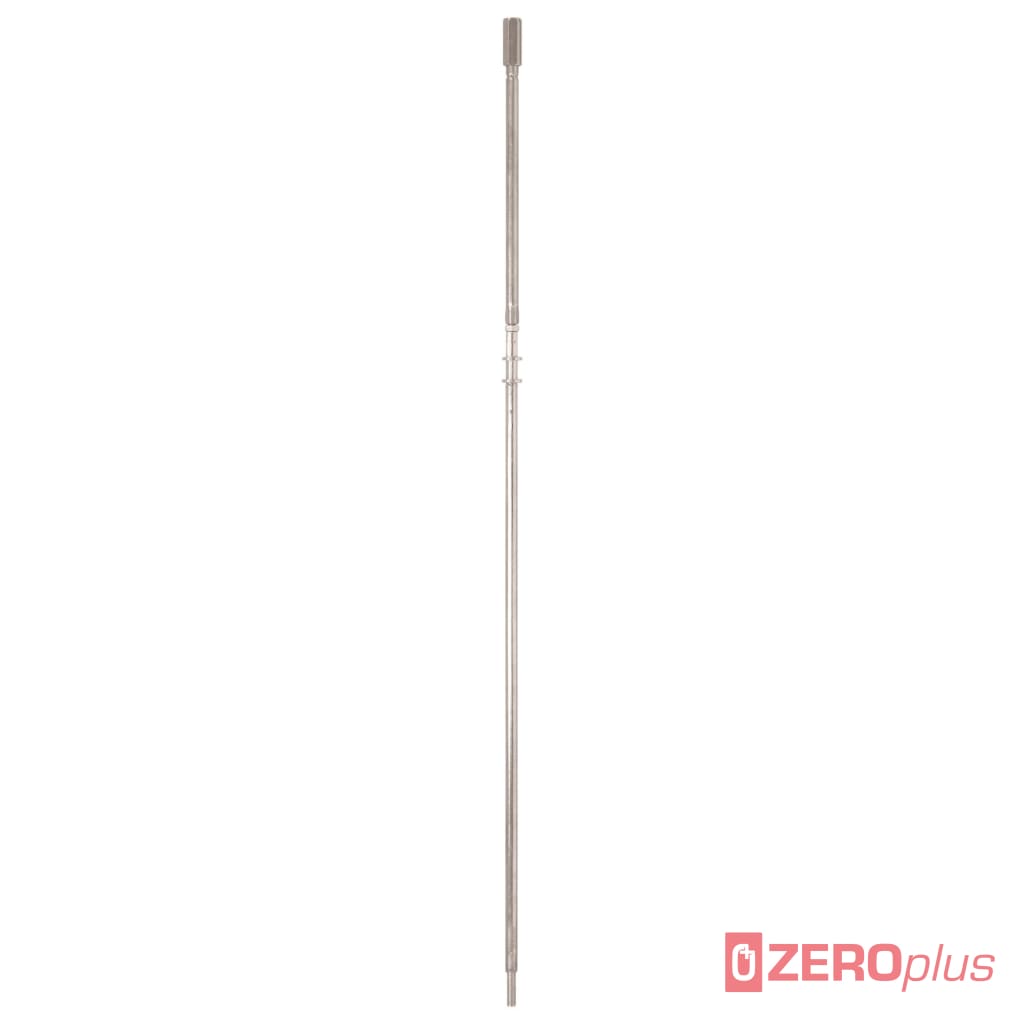

For increasing attack resistance in steel doors. Consisting of central lock, connecting rods and upper and lower locks. Each rod is easily adjustable from 850mm to 1030mm, and positively fixed to the central lock. The upper and lower locks attach to the rods using a lever and connector method. Rod guides and a full set of strike plates complete the system.

FEATURES

• 4 smart key-turns, 42mm bolt throw
• 15 locking bolts
• Geometrical locking
• Double cylinder operation
• Cogwheel central locking mechanism
• Dead-bolt latch when locked
• Positive screw fixed rods
• Operated by Euro profile cam cylinders
• Easily reversible latch bolt
• Tested to the requirements of EN 12209

LOCK SET INCLUDES

• Central lock
• Top and bottom locks
• Adjustable rods
• Rod guides
• Counter strikes
• Installation instructions

SPECIFICATIONS

• Handle operation
• Latch - Ø20mm
• Backset - 65mm
• Bolt throw - 42mm
• Minimum door height - 1950mm
• Maximum door height - 2120mm

FINISH

• Bolts, forends and strikes - Chrome nickel plated steel
• Lock cases - Galvanised steel
