Description
FORCE
One body size in three force sizes EN 2-3-4 (17,22 & 28Nm). 10Nm model to order.
MAX DOOR WEIGHT
100kg. Door size: From 850x2200mm (Force 2) to 1100x2400mm (Force 4).
CERTIFICATION
All models have EN 1154, version force EN 3-4 without hold-open have CE conformity. DoP on our website.
HYDRAULIC CONTROL
Closing from 175° in both swings. Two independent speed valves.
HOLD-OPEN
Standard with 90° hold-open (5); also available 105° (0) or without hold-open (2).

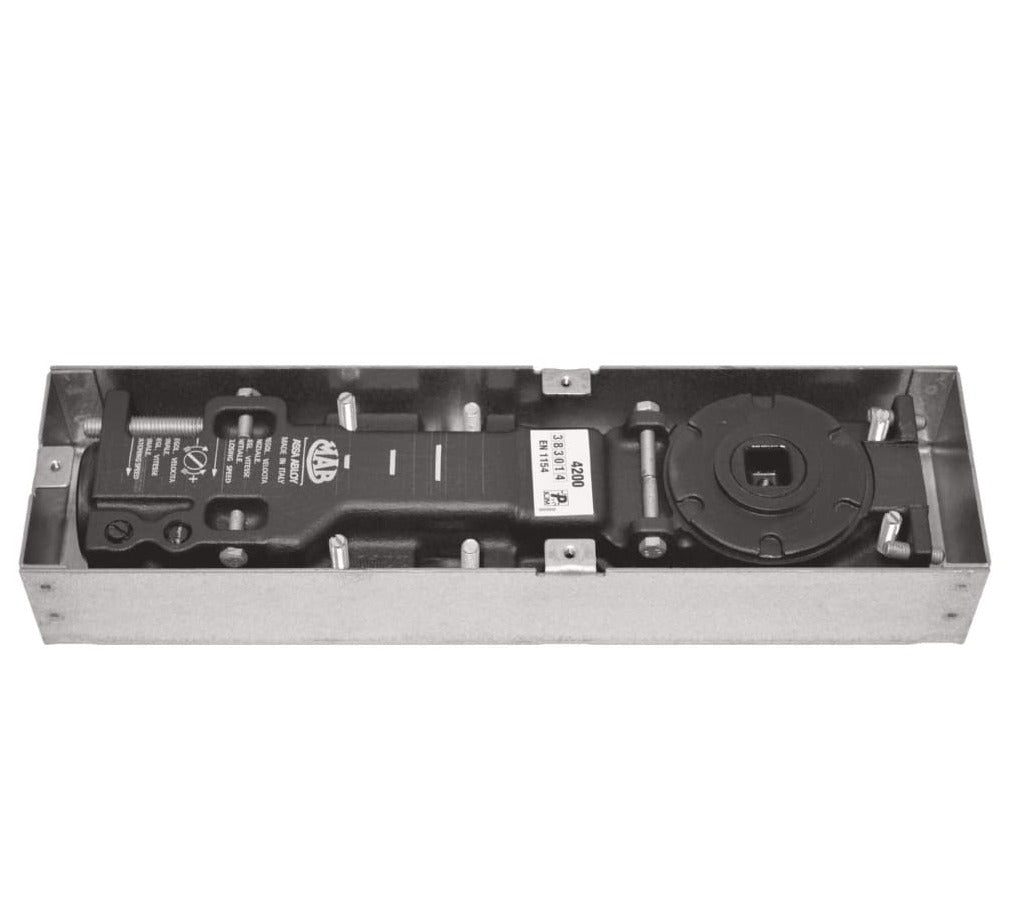

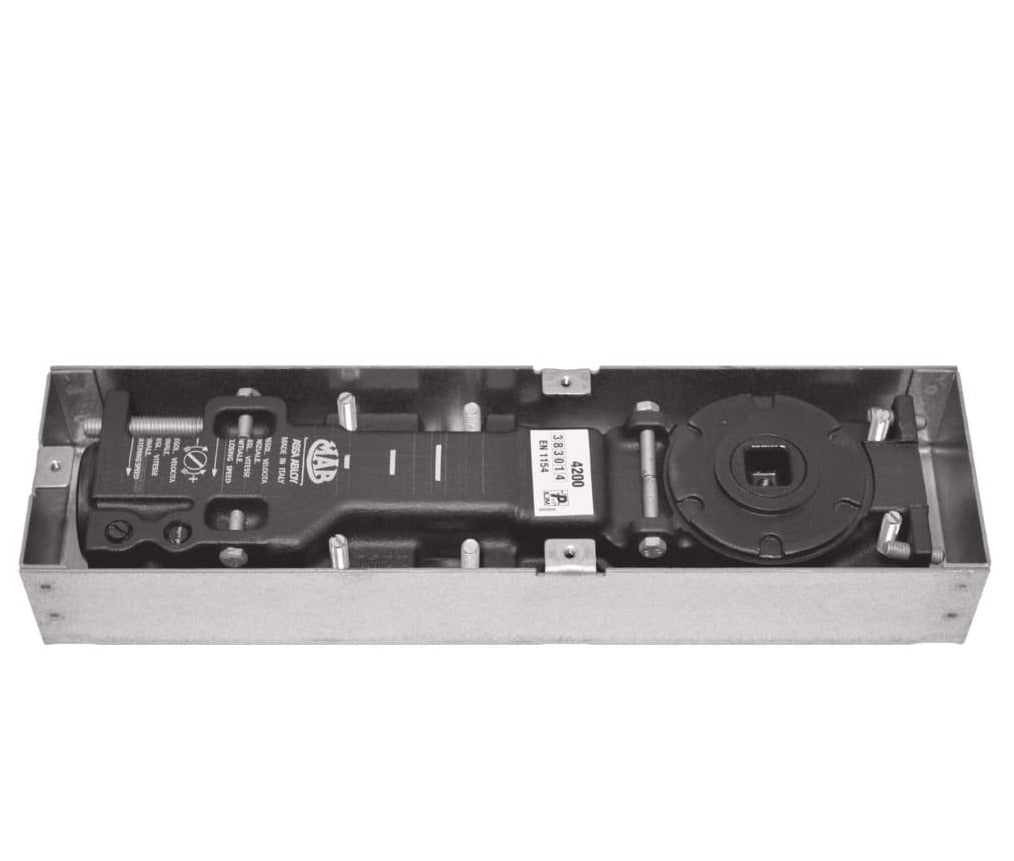

CEMENT BOX
Included. 82mm wide x 306mm long x 47mm deep.
CEMENT BOX ADJUSTMENT
10mm lateral, 10mm longitudinal, 5mm vertical.
COVER PLATE SIZE
108x322mm SSS included (PSS & PB to order).
SPINDLE
Not included; specify square Italian, square French or rectangular German.
