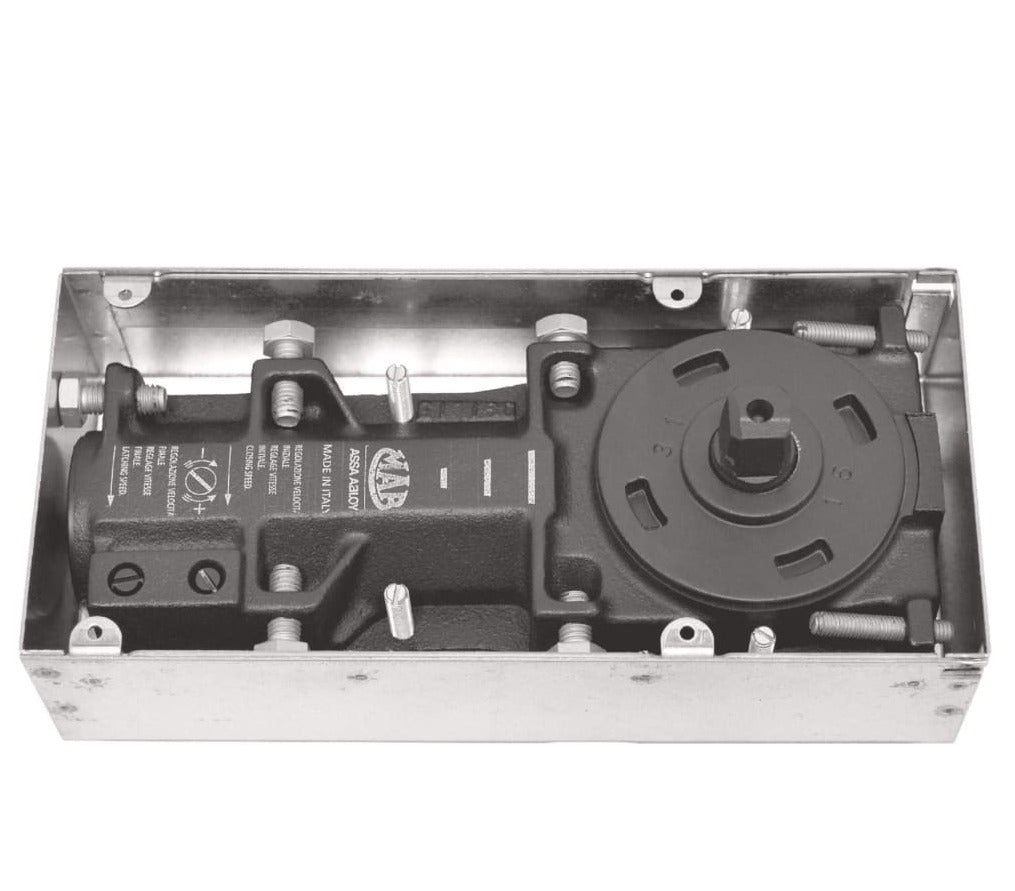

MAB 7100 Series Floor Spring, Compact, Low Opening Force

FORCE
One body size in three power sizes EN 1-2-3 (10,16 & 20Nm).

MAX DOOR WEIGHT
100kg. Door size: From 750x2100mm (Force 1) to 950x2300mm (Force 3).

CERTIFICATION
Not CE marked. No DoP. Not to be used on fire doors.

HYDRAULIC CONTROL
Closing from 135° in both swings. Two independent speed valves.

HOLD-OPEN
Standard with 90° hold-open (5); also available 105° (0) or without hold-open (2).

CEMENT BOX
Included. 105mm wide x 222mm long x 55mm deep.

COVER PLATE SIZE
122x240mm SSS included (PSS & PB to order).

SPINDLE
Supplied with Italian square spindle already fitted, cannot be changed.
