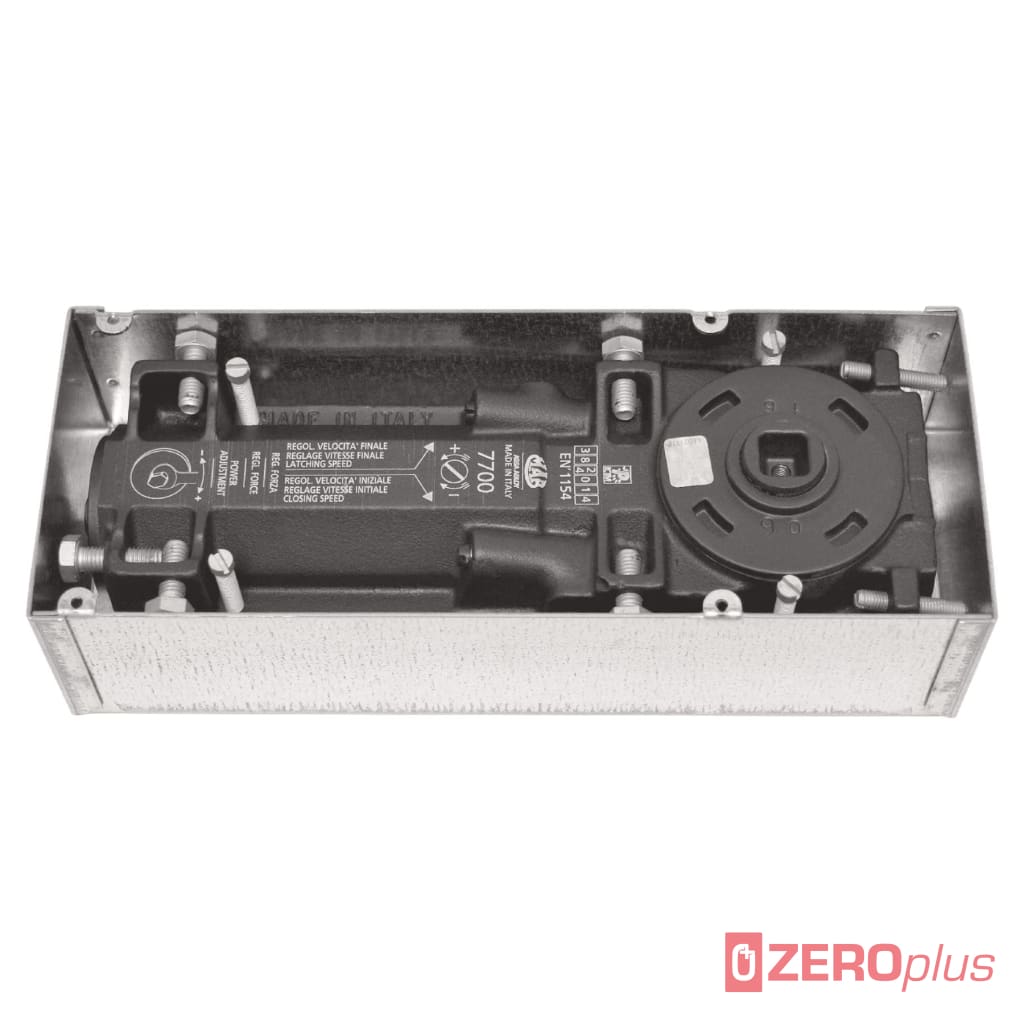

Adjustable power EN 2-4 (14Nm-28Nm). With mechanical backcheck.
MAX DOOR WEIGHT
170kg. Door size: From 600x2000mm (Force 2) to 1100x2400mm (Force 4).
Model 7702 without hold-open has CE conformity. DoP on our website.
Closing from 150° in both swings. Two independent speed valves.
Standard with 90° hold-open (5); also available 105° (0) or without hold-open (2).
Included. 110mm wide x 277mm long x 70mm deep.
CEMENT BOX ADJUSTMENT
4° angular, 10mm longitudinal, 9mm vertical.
COVER PLATE SIZE
129x294mm SSS included (PSS & PB to order).
Not included; specify square Italian, square French or rectangular German.
