Description

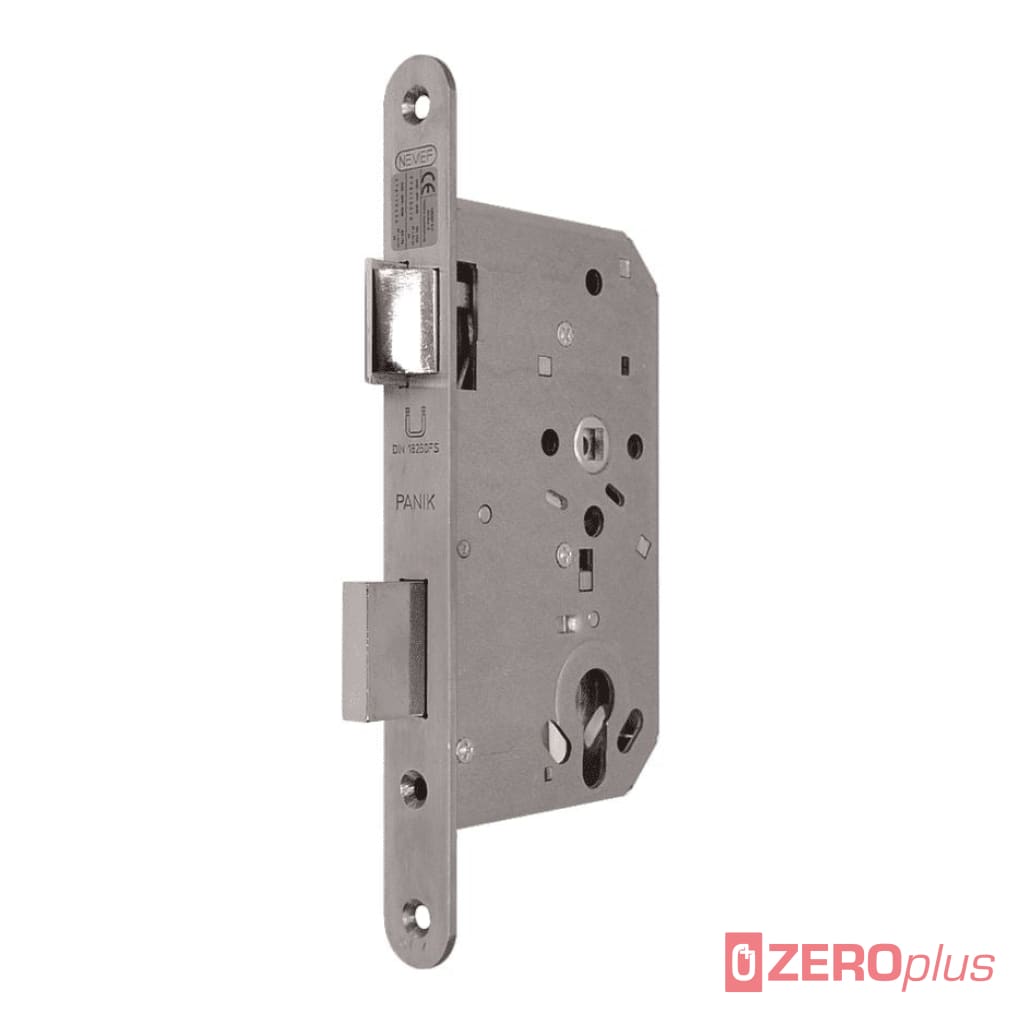

When using the Z1769/56, door furniture with a split spindle is required. In unlocked position, the latch bolt is operated from both sides by lever handle/key action. In the locked position, the inside lever handle retracts latch and dead bolt simultaneously. The outside lever handle retracts latch bolt only. The dead bolt is operated by cylinder key.Please note when Z1769 lockcases are used with a key and key euro profile cylinder, the key must be removed to ensure correct operation. NOT TO BE USED WITH A THUMBTURN CYLINDER.
- Conforms to DIN 18251.
- Conforms to EN 179 (depending on handle used).
- European style 72mm centres, 65mm backset and 9mm follower.
- DoP available on our website.
- 24x235mm Stainless Steel radiused forend.
- Galvanised steel case.
- Conforms to DIN 18251.
- Conforms to EN 179 (depending on handle used).
- European style 72mm centres, 65mm backset and 9mm follower.
- DoP available on our website.
- 24x235mm Stainless Steel radiused forend.
- Galvanised steel case.
