Description
- Power transfer units provide means for running electrical wires from the frame to the door in a secure and discreet manner.
- US32D stainless steel housing and spring conduit. All components and screws Grade 304 stainless steel.
- Fully concealed when door is in closed position. Fully mortised channel.
- 12mm diameter flexible stainless steel spring conduit.
- UL Listed in the USA.
- Designed for low voltage use only. 30 VAC, 42.5 VDC, 10 WATTS maximum.
- ZPT105 and ZPTR105 allow for maximum door opening of 105 degrees.
- ZPT180 and ZPTR180 allow for maximum door opening of 180 degrees.

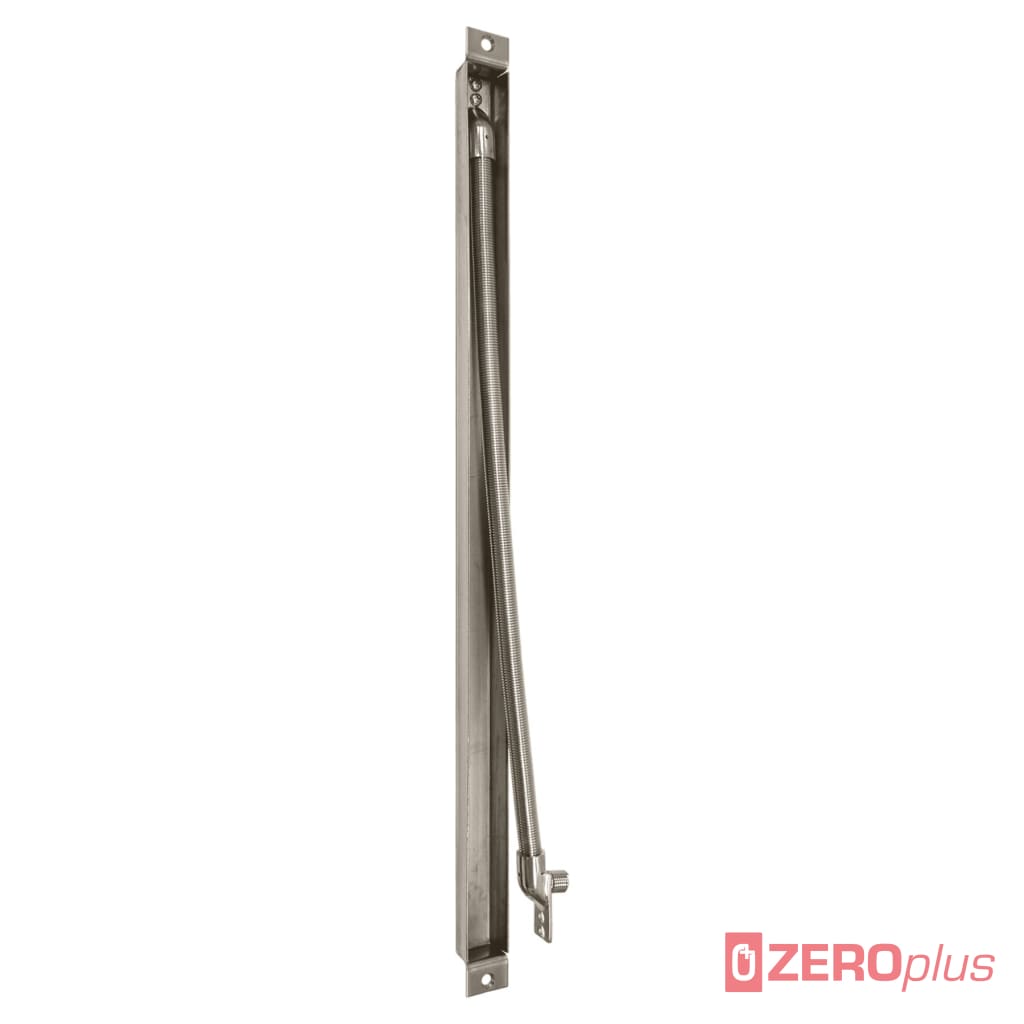

- ZPT105 and ZPT180 have channel with square ends.
- ZPTR105 and ZPTR180 have channel with radius ends.

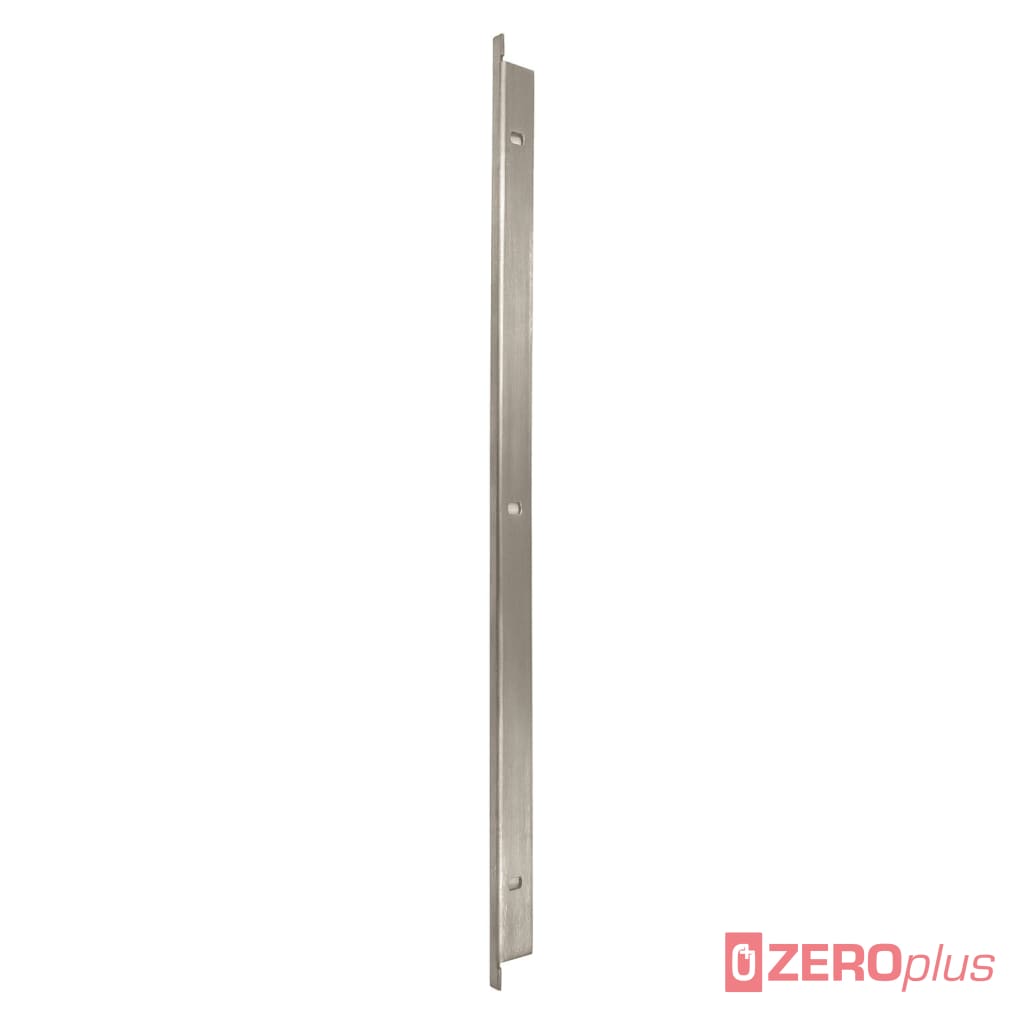

- Optional security brackets available ref ZPTS105 and ZPTS180 to prevent tampering when the door is in the closed position.
- US32D stainless steel housing and spring conduit. All components and screws Grade 304 stainless steel.
- Fully concealed when door is in closed position. Fully mortised channel.
- 12mm diameter flexible stainless steel spring conduit.
- UL Listed in the USA.
- Designed for low voltage use only. 30 VAC, 42.5 VDC, 10 WATTS maximum.
- ZPT105 and ZPTR105 allow for maximum door opening of 105 degrees.
- ZPT180 and ZPTR180 allow for maximum door opening of 180 degrees.
- ZPT105 and ZPT180 have channel with square ends.
- ZPTR105 and ZPTR180 have channel with radius ends.
- Optional security brackets available ref ZPTS105 and ZPTS180 to prevent tampering when the door is in the closed position.
