Ellen ASP Aluminium perimeter seal, Frame Seal, 3-part set – 010851223

The Ellen ASP Aluminum perimeter seal is a frame seal comprising of a 3-part set. 2no – 2300mm for the side of the frame and 1no – 1150mm for the top of the frame. To be cut to the right size and mount with screws.

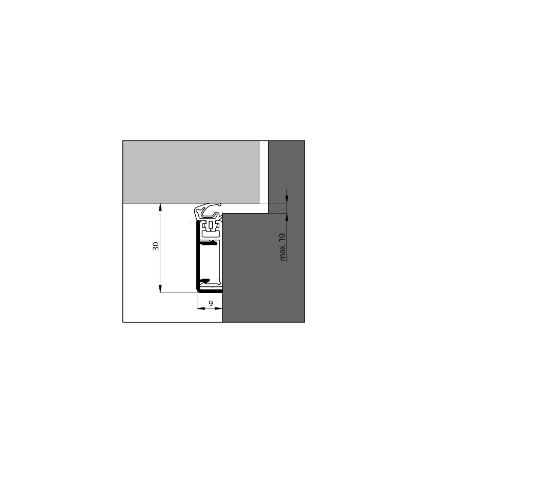

Anodised aluminum for an esthetic appearance on the door with a silicon seal. Surface fixed with concealed fixings. Low resistance when closing the door. Easily adjustable for optimal closure of larger gaps. Maximum gap : 10mm.

Can be used with the Ellenmatic Soundproof drop seal and Ellenmatic Elegance Holder profile. Ideal for hotels, offices and care facilities. When used as this full set can upgrade existing soundproof and smoke proof doors. When used as this full set it will achieve the following ratings Smoke tested to BS EN 1634-3, both sa (ambient) and Sm (200°C). Included in acoustic tests to 44 dB.
